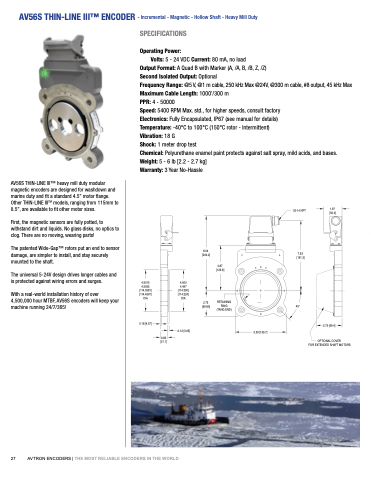

AV56S THIN-LINE IIITM ENCODER - - - - - Incremental - - - - - Magnetic - - - - - Hollow Shaft - - - - - Heavy Mill Duty SPECIFICATIONS
Operating Power:
Volts: 5 - 24 VDC Current: 80 mA no load
Output Format: A A A Quad B B B with Marker (A /A B B B /B Z Z /Z)
Second Isolated Output: Optional
Frequency Range: @5 V V @1 m m cable cable 250 kHz kHz Max Max @24V @300 m m cable cable #8 output 45 kHz kHz Max Max Maximum Cable Length: 1000’/300 m m m PPR: 4 - 50000
Speed: 5400 RPM Max std for higher speeds consult factory
Electronics: Fully Encapsulated IP67 (see manual for details)
Temperature: -40°C to to 100°C (150°C rotor - - Intermittent)
Vibration: 18 G Shock: 1 meter drop test
Chemical: Polyurethane enamel paint protects against salt spray mild acids and bases Weight: 5 - - 6 lb [2 2 2 2 - - 2 2 2 7 kg]
Warranty: 3 Year No-Hassle
AV56S THIN-LINE IIITM heavy mill duty modular magnetic encoders are designed for washdown and marine duty and and fit a a a a a a standard 4 5” motor flange Other THIN-LINE IIITM models ranging from 115mm to 8 5” are available to to fit other motor sizes First the magnetic sensors are fully potted to withstand dirt and and liquids No glass disks no optics to clog There are no moving wearing parts!
The patented Wide-GapTM rotors put an end to to sensor damage are simpler to install and stay securely mounted to the shaft The universal 5-24V design drives longer cables and is protected against wiring errors and surges With a a a a real-world installation history of over
4 500 000 hour MTBF AV56S encoders will keep your machine running 24/7/365!
1/2-14 NPT 1 1 1 97 [50 0]
8 04 04 [204 2]
4 87 [123 8]
7 53 [191 3]
45°
27 AVTRON ENCODERS ENCODERS | THE THE MOST RELIABLE ENCODERS ENCODERS IN THE THE WORLD
4 4 5015
4 4 4 5055 [114 [114 3381] [114 [114 4397] DIA
0 18 [4 57]
0 83 [21 1] 4 4 4 500 4 4 4 4 497 [114 [114 300] [114 [114 224] DIA
0 0 12 [3 05]
2 75
RETAINING
[69 85] RING (TANG END)
5 5 50 [139 7] 2 73 [69 4] OPTIONAL COVER FOR EXTENDED SHAFT MOTORS
