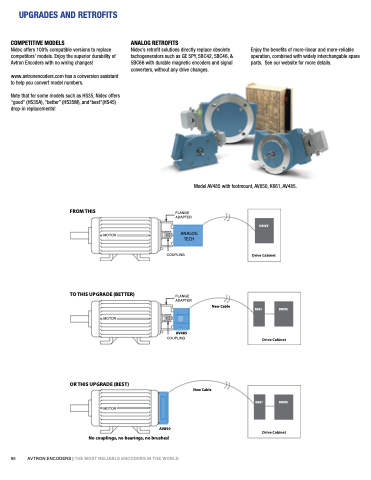

UPGRADES AND RETROFITS
COMPETITIVE MODELS
Nidec offers 100% compatible versions to replace competitors’ models Enjoy the superior durability of Avtron Encoders with no wiring changes!
www avtronencoders com has a a a a a conversion assistant to help you convert model numbers Note that for some models such as HS35 Nidec offers “good” (HS35A) “better” (HS35M) and“best”(HS45) drop-in replacements!
ANALOG RETROFITS
Nidec’s retrofit solutions directly replace obsolete tachogenerators such as GE 5PY 5BC42 5BC46 & 5BC66 with durable magnetic encoders and signal converters without any drive changes Enjoy the benefits of more-linear and more-reliable operation combined with widely interchangable spare parts See our website for more details Model AV485 AV485 with footmount AV850 K661 AV485 AV485 FROM THIS
FLANGE ADAPTER
ANALOG TECH
COUPLING
FLANGE ADAPTER
AV485 COUPLING
MOTOR
TO THIS
UPGRADE (BETTER)
MOTOR
OR THIS
UPGRADE (BEST)
MOTOR
New Cable
AV850 No couplings no no bearings no no brushes!
New Cable
K661 DRIVE
Drive Cabinet
Drive Cabinet
DRIVE
K661 DRIVE
95 AVTRON ENCODERS ENCODERS | THE THE MOST RELIABLE ENCODERS ENCODERS IN THE THE WORLD
