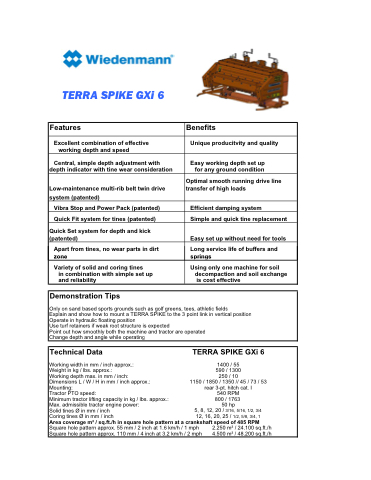

Page 16 - 2019SalesTrainingManual.pdf

TERRA SPIKE GXi 6
Features
Benefits
Excellent combination of effective working depth and speed
Unique producitvity and quality
Central, simple depth adjustment with depth indicator with tine wear consideration
Easy working depth set up for any ground condition
Low-maintenance multi-rib belt twin drive system (patented)
Optimal smooth running drive line transfer of high loads
Vibra Stop and Power Pack (patented)
Efficient damping system
Quick Fit system for tines (patented)
Simple and quick tine replacement
Quick Set system for depth and kick (patented)
Easy set up without need for tools
Apart from tines, no wear parts in dirt zone
Long service life of buffers and springs
Variety of solid and coring tines
in combination with simple set up and reliability
Using only one machine for soil decompaction and soil exchange
is cost effective
Demonstration Tips
Only on sand based sports grounds such as golf greens, tees, athletic fields
Explain and show how to mount a TERRA SPIKE to the 3 point link in vertical position Operate in hydraulic floating position
Use turf retainers if weak root structure is expected
Point out how smoothly both the machine and tractor are operated
Change depth and angle while operating
Technical Data
Working width in mm / inch approx.: Weight in kg / lbs. approx.:
Working depth max. in mm / inch: Dimensions L / W / H in mm / inch approx.: Mounting:
TERRA SPIKE GXi 6
1400 / 55
590 / 1300
250 / 10
1150 / 1850 / 1350 // 45 / 73 / 53 rear 3-pt. hitch cat. I
540 RPM
Tractor PTO speed:
Minimum tractor lifting capacity in kg / lbs. approx.:
Max. admissible tractor engine power:
Solid tines Ø in mm / inch
Coring tines Ø in mm / inch
Area coverage m2 / sq.ft./h in square hole pattern at a crankshaft speed of 485 RPM Square hole pattern approx. 55 mm / 2 inch at 1.6 km/h / 1 mph 2.250 m2 / 24.100 sq.ft./h Square hole pattern approx. 110 mm / 4 inch at 3.2 km/h / 2 mph 4.500 m2 / 48.200 sq.ft./h
800 / 1763
50 hp
5, 8, 12, 20 / 3/16, 5/16, 1/2, 3/4 12, 16, 20, 25 / 1/2, 5/8, 3/4, 1
