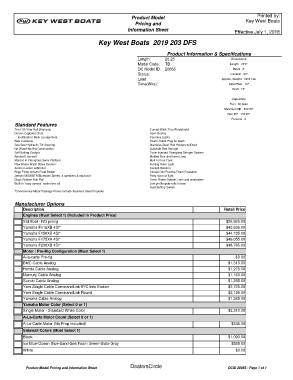

Page 17 - 2019 Key West Boats Retail Pricing with pricesheets 7.9.18

Product Model Printed by:
Pricing and Key West Boats
Information Sheet
Effective July 1, 2018
Key West Boats 2019 203 DFS

Product Information & Specifications
Length: 20.25 -Dimensions-
Model Code: TD Length 20'3"
DC Model ID: 20055 Beam 8'
Status: Transom 25"
Lead Approx. Weight 1950 Lbs
Time(Wks): Dead Rise 19°
Draft 12"
-Capacities-
Fuel 60 Gals
Maximum HP 200 HP
Rec. HP 150 HP
Persons 8
Standard Features
Ten (10) Year Hull Warranty Curved Walk-Thru Windshield
Deluxe Captains Chair Horn-electric
and Back to Back Lounge Seat Courtesy Lights
Bow Cushions Power Outlet Plug on Dash
Sea Star Hydraulic Tilt Steering Stainless-Steel Rod Holders w/ Drain
No Wood-No Rot Construction Gunwale Rod Storage
Self Bailing Cockpit Foam Injected Fiberglass Stringer System
Aerated Live well Molded Non-skid Inner Liner
Molded In Fiberglass Swim Platform Built-In Fuel Tank
Raw Water Wash Down System Folding Stern Light
Anchor Locker w/Anchor Cockpit Bolsters
Bilge Pump w/Auto Float Switch Closed Cell Positive Foam Floatation
Jensen MS30BTR Bluetooth Stereo, 4 speakers & mp3 port Potty room w/ light
Black Rubber Rub Rail Fresh Water System , sink and washdown
Built-in "easy access" cooler box aft Low profile grab rails in bow
Dual Battery Switch
*Convenience Motor Package Prices Include Stainless Steel Propeller

Manufacturer Options
Description Retail Price
Engines (Must Select 1) (Included in Product Price)
Std Boat - NO prerig $26,925.00
Yamaha F115XB 4St* $40,635.00
Yamaha F150XB 4St* $44,185.00
Yamaha F175XA 4St* $46,055.00
Yamaha F200XB 4St* $48,765.00
Motor / Pre-Rig Configuration (Must Select 1)
A-la-carte Pre-rig $0.00
BMC Cable Analog $1,310.00
Honda Cable Analog $1,275.00
Mercury Cable Analog $1,160.00
Suzuki Cable Analog $1,295.00
Yam Single Cable CommandLink 6YC Info Station $2,725.00
Yam Single Cable CommandLink Round $2,135.00
Yamaha Cable Analog $1,345.00
Yamaha Motor Color (Select 0 or 1)
Single Motor - Standard White Color $2,310.00
A-La-Carte Motor Count (Select 0 or 1)
A-La-Carte Motor (No Prop Included) $335.00
Sidewall Colors (Must Select 1)
Black $1,000.00
Ice Blue-Ocean Blue-Sand-Sea Foam Green-Slate Gray $585.00
White $0.00

DealersCircle
Product Model Pricing and Information Sheet DCID 20055 - Page 1 of 1
