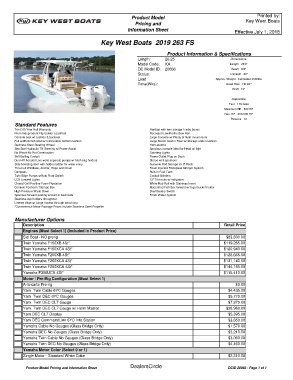

Page 43 - 2019 Key West Boats Retail Pricing with pricesheets 7.9.18

Product Model Printed by:
Pricing and Key West Boats
Information Sheet
Effective July 1, 2018
Key West Boats 2019 263 FS

Product Information & Specifications
Length: 26.25 -Dimensions-
Model Code: KA Length 26'3"
DC Model ID: 20066 Beam 9'3"
Status: Transom 30"
Lead Approx. Weight Estimated 4500lbs
Time(Wks): Dead Rise 19/ 24°
Draft 16"
-Capacities-
Fuel 175 Gals
Maximum HP 500 HP
Rec. HP 300-500 HP
Persons 12
Standard Features
Ten (10) Year Hull Warranty Hardtop with twin storage / radio boxes
Prem Independent Flip bolster LeanPost Recessed Low Profile Bow Rail
Console seat w/ cushion & backrest Large Console w/ Plenty of flush mount room
Full width bench seat w/ removeable bottom cushion Large Bench Seat in Rear w/ Storage under cushion
Stainless Steel Steering Wheel Horn-electric
Sea Star Hydraulic Tilt Steering w/ Power Assist Spacious console ideal for Head w/ light
No Wood-No Rot Construction Courtesy Lights
Self-Bailing Cockpit Power Outlet Plug on Dash
Dual Aft Aerated Live wells separate pumps w/ trash bag holders Stereo w/ 8 speakers
Side boarding door with hidden ladder for water entry Gunwale Rod Storage for 8' Rods
Thru-hull Windlass, Anchor, Rope and Chain Foam Injected Fiberglass Stringer System
Compass Built-In Fuel Tank
Twin Bilge Pumps w/Auto Float Switch Cockpit Bolsters
LED Livewell Lights 12" Trim tabs w/ indicators
Closed Cell Positive Foam Floatation White Rub Rail with Stainless Insert
Console Footrest / Storage Box Macerated Fish Box forward w/ 5 gal bucket holder
High Pressure Wash Down Dual Battery Switch
Spacious forward seating w/ built-in backrests Fresh Water System
Stainless cup holders throughout
Linered Bilge w/ Large Access through bench box
*Convenience Motor Package Prices Include Stainless Steel Propeller

Manufacturer Options
Description Retail Price
Engines (Must Select 1) (Included in Product Price)
Std Boat - NO prerig $83,800.00
Twin Yamaha F150XB 4St* $119,265.00
Twin Yamaha F150XCA 4St* $120,940.00
Twin Yamaha F200XB 4St* $128,665.00
Twin Yamaha F200XCA 4St* $131,140.00
Twin Yamaha F250XCA 4St* $144,185.00
Yamaha F300UCA 4St* $115,410.00
Motor / Pre-Rig Configuration (Must Select 1)
A-la-carte Pre-rig $0.00
Yam Twin Cable 6YC Gauges $4,435.00
Yam Twin DEC 6YC Gauges $5,770.00
Yam Twin DEC CL7 Gauge $7,370.00
Yam Twin DEC CL7 Gauge w/ Helm Master $38,960.00
Yam DEC CL7 Display $5,395.00
Yam DEC CommandLink 6YC Info Station $3,650.00
Yamaha Cable No Gauges (Glass Bridge Only) $1,570.00
Yamaha DEC No Gauges (Glass Bridge Only) $3,210.00
Yamaha Twin Cable No Gauges (Glass Bridge Only) $3,060.00
Yamaha Twin DEC No Gauges (Glass Bridge Only) $4,460.00
Yamaha Motor Color (Select 0 or 1)
Single Motor - Standard White Color $2,310.00

DealersCircle
Product Model Pricing and Information Sheet DCID 20066 - Page 1 of 1
