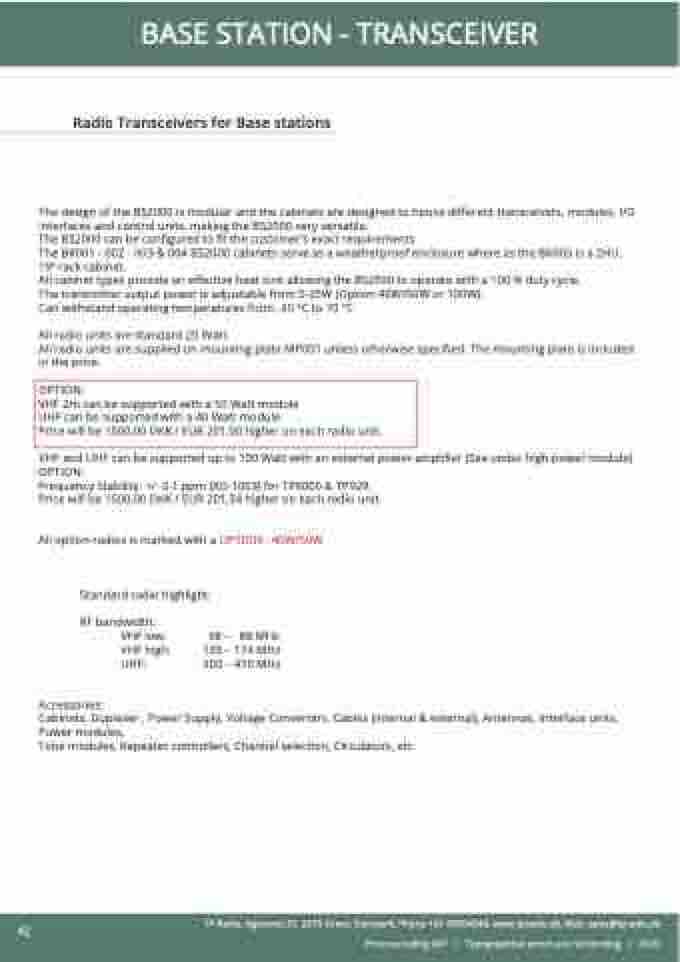

BASE STATION - TRANSCEIVER
Radio Transceivers for Base stations
The design of the BS2000 is modular and the cabinets are designed to house different transceivers, modules, I/O interfaces and control units, making the BS2000 very versatile.
The BS2000 can be configured to fit the customer’s exact requirements
The BK001 - 002 - 003 & 004 BS2000 cabinets serve as a weatherproof enclosure where as the BK005 is a 2HU, 19” rack cabinet.
All cabinet types provide an effective heat sink allowing the BS2000 to operate with a 100 % duty cycle. The transmitter output power is adjustable from 5-25W (Option 40W/50W or 100W).
Can withstand operating temperatures from -30 °C to 70 °C
All radio units are standard 25 Watt.
All radio units are supplied on mounting plate MP001 unless otherwise specified. The mounting plate is included in the price.
VHF and UHF can be supported up to 100 Watt with an external power amplifier (See under high power module) OPTION:
Frequency Stability: +/- 0.1 ppm (XO-1003) for TP6000 & TP929.
Price will be 1500,00 DKK / EUR 201,34 higher on each radio unit.
All option-radios is marked with a OPTION - 40W/50W Standard radio highlight:
OPTION:
VHF 2m can be supported with a 50 Watt module
UHF can be supported with a 40 Watt module
Price will be 1500,00 DKK / EUR 201,00 higher on each radio unit.
RF bandwidth: VHF low:
VHF high: UHF:
68 – 88 MHz 135 – 174 MHz 350 – 470 MHz
Accessories:
Cabinets, Duplexer , Power Supply, Voltage Converters, Cables (internal & external), Antennas, Interface units, Power modules,
Tone modules, Repeater controllers, Channel selection, Circulators, etc
