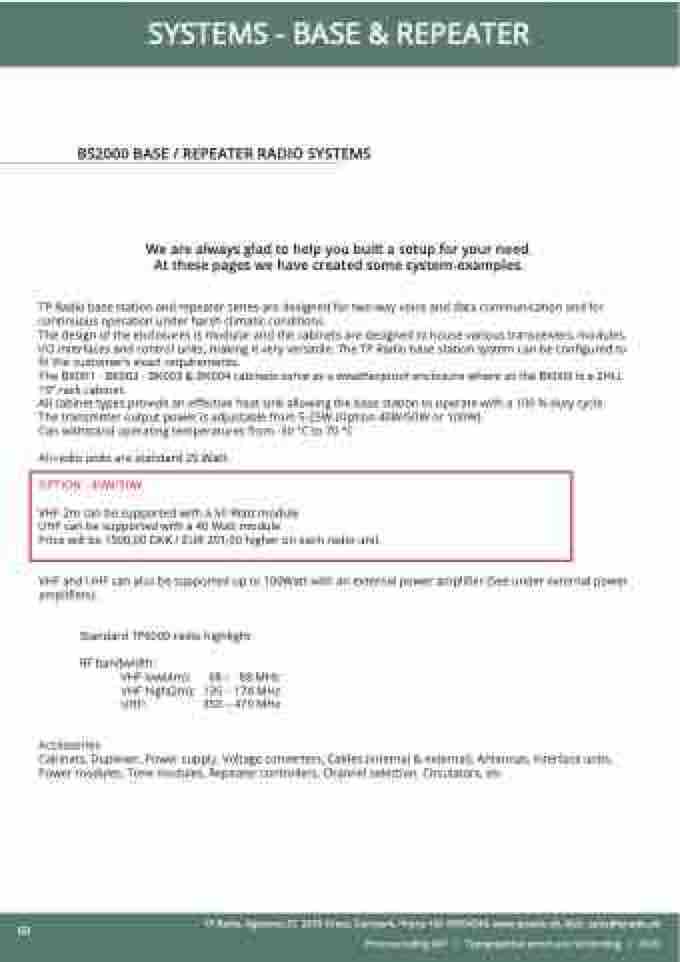

BS2000 BASE / REPEATER RADIO SYSTEMS
We are always glad to help you built a setup for your need. At these pages we have created some system-examples.
TP Radio base station and repeater series are designed for two-way voice and data communication and for continuous operation under harsh climatic conditions.
The design of the enclosures is modular and the cabinets are designed to house various transceivers, modules, I/O interfaces and control units, making it very versatile. The TP Radio base station system can be configured to fit the customer’s exact requirements.
The BK001 - BK002 - BK003 & BK004 cabinets serve as a weatherproof enclosure where as the BK005 is a 2HU, 19” rack cabinet.
All cabinet types provide an effective heat sink allowing the base station to operate with a 100 % duty cycle. The transmitter output power is adjustable from 5-25W (Option 40W/50W or 100W).
Can withstand operating temperatures from -30 °C to 70 °C All radio units are standard 25 Watt.
VHF and UHF can also be supported up to 100Watt with an external power amplifier (See under external power amplifiers).
Standard TP6000 radio highlight:
OPTION - 40W/50W
VHF 2m can be supported with a 50 Watt module
UHF can be supported with a 40 Watt module
Price will be 1500,00 DKK / EUR 201,00 higher on each radio unit.
RF bandwidth:
VHF low(4m):
VHF high(2m): UHF:
68 – 88 MHz 135 – 174 MHz 350 – 470 MHz
Accessories
Cabinets, Duplexer, Power supply, Voltage converters, Cables (internal & external), Antennas, Interface units, Power modules, Tone modules, Repeater controllers, Channel selection, Circulators, etc
