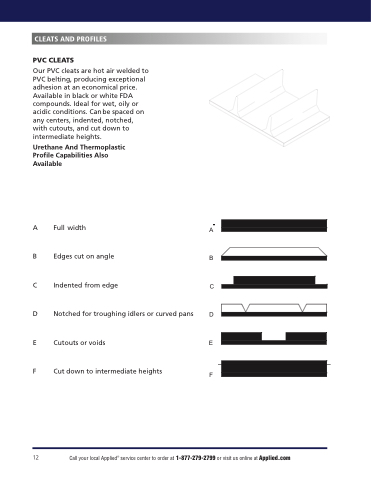

CLEATS AND PROFILES
PVC CLEATS
Our PVC cleats are hot air welded to PVC belting, producing exceptional adhesion at an economical price. Available in black or white FDA compounds. Ideal for wet, oily or acidic conditions. Canbe spaced on any centers, indented, notched, with cutouts, and cut down to intermediate heights.
Urethane And Thermoplastic Profile Capabilities Also Available
A Full width
B Edges cut on angle
C Indented from edge
D Notched for troughing idlers or curved pans D
E Cutouts or voids E
F Cut down to intermediate heights
A B C
F
