P. 33

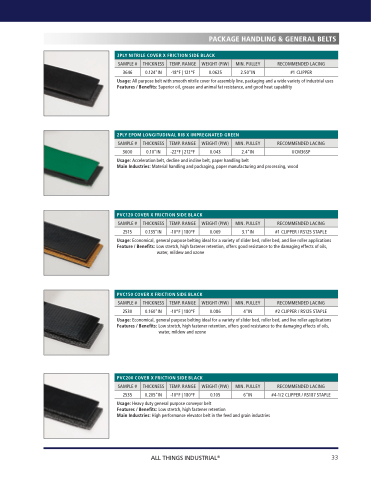

  PACKAGE HANDLING & GENERAL BELTS
  3PLY NITRILE COVER X FRICTION SIDE BLACK
            SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
     3646 #1 CLIPPER
Usage: All purpose belt with smooth nitrile cover for assembly line, packaging and a wide variety of industrial uses
Features / Benefits: Superior oil, grease and animal fat resistance, and good heat capability
3600 UCM36SP Usage: Acceleration belt, decline and incline belt, paper handling belt
Main Industries: Material handling and packaging, paper manufacturing and processing, wood
2515 #1 CLIPPER / RS125 STAPLE
Usage: Economical, general purpose belting ideal for a variety of slider bed, roller bed, and live roller applications Feature / Benefits: Low stretch, high fastener retention, offers good resistance to the damaging effects of oils,
-18°F | 121°F
0.0625
MIN. PULLEY
2.50"IN
RECOMMENDED LACING
    0.124"IN
        2PLY EPDM LONGITUDINAL RIB X IMPREGNATED GREEN
            SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
         0.10"IN
-22°F | 212°F
0.043
2.4"IN
        PVC120 COVER X FRICTION SIDE BLACK
            SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
         0.135"IN
-10°F | 180°F
0.069
3.1"IN
      water, mildew and ozone
  PVC150 COVER X FRICTION SIDE BLACK
            SAMPLE #
2530
#2 CLIPPER / RS125 STAPLE
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
         0.160"IN
-10°F | 180°F
0.086
4"IN
      Usage: Economical, general purpose belting ideal for a variety of slider bed, roller bed, and live roller applications Features / Benefits: Low stretch, high fastener retention, offers good resistance to the damaging effects of oils,
water, mildew and ozone
  PVC200 COVER X FRICTION SIDE BLACK
            SAMPLE #
2535
#4-1/2 CLIPPER / RS187 STAPLE
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
         0.205"IN
-10°F | 180°F
0.105
6"IN
      Usage: Heavy duty general purpose conveyor belt
Features / Benefits: Low stretch, high fastener retention
Main Industries: High performance elevator belt in the feed and grain industries
 ALL THINGS INDUSTRIAL®
33
