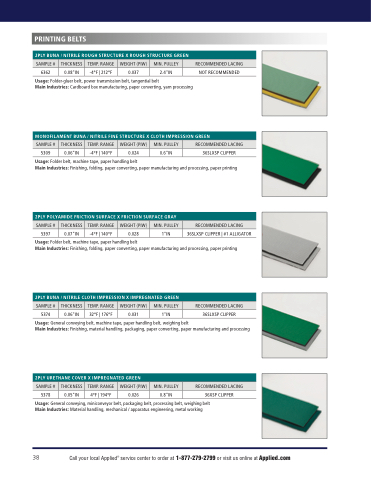

PRINTING BELTS
2PLY BUNA / NITRILE ROUGH STRUCTURE X ROUGH STRUCTURE GREEN
SAMPLE #
THICKNESS
TEMP. RANGE
6362
Usage: Folder-gluer belt, power transmission belt, tangential belt
Main Industries: Cardboard box manufacturing, paper converting, yarn processing
5309
Usage: Folder belt, machine tape, paper handling belt
NOT RECOMMENDED
WEIGHT (PIW)
0.037
MIN. PULLEY
2.4"IN
RECOMMENDED LACING
0.08"IN
-4°F | 212°F
MONOFILAMENT BUNA / NITRILE FINE STRUCTURE X CLOTH IMPRESSION GREEN
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
36SLXSP CLIPPER Main Industries: Finishing, folding, paper converting, paper manufacturing and processing, paper printing
MIN. PULLEY
RECOMMENDED LACING
0.06"IN
-4°F | 140°F
0.024
0.6"IN
2PLY POLYAMIDE FRICTION SURFACE X FRICTION SURFACE GRAY
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
5397 36SLXSP CLIPPER | #1 ALLIGATOR Usage: Folder belt, machine tape, paper handling belt
Main Industries: Finishing, folding, paper converting, paper manufacturing and processing, paper printing
5374 36SLXSP CLIPPER Usage: General conveying belt, machine tape, paper handling belt, weighing belt
Main Industries: Finishing, material handling, packaging, paper converting, paper manufacturing and processing
5378 36XSP CLIPPER Usage: General conveying, miniconveyor belt, packaging belt, processing belt, weighing belt
Main Industries: Material handling, mechanical / apparatus engineering, metal working
0.07"IN
-4°F | 140°F
2PLY BUNA / NITRILE CLOTH IMPRESSION X IMPREGNATED GREEN
0.028
1"IN
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.06"IN
32°F | 176°F
0.031
1"IN
2PLY URETHANE COVER X IMPREGNATED GREEN
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.05"IN
4°F | 194°F
0.026
0.8"IN
