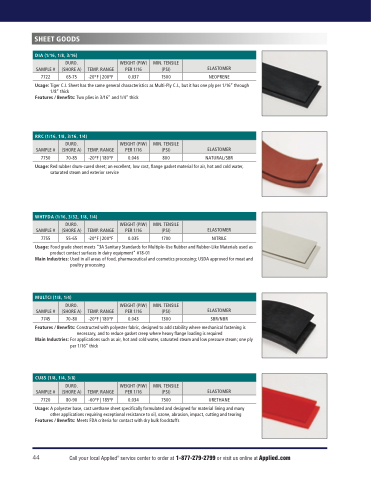

SHEET GOODS
DIA (1/16, 1/8, 3/16)
SAMPLE #
DURO. (SHORE A)
TEMP. RANGE
WEIGHT (PIW) PER 1/16
7722 NEOPRENE
Usage: Tiger C.I. Sheet has the same general characteristics as Multi-Ply C.I., but it has one ply per 1/16” through 1/8” thick
Features / Benefits: Two plies in 3/16” and 1/4” thick
7750 NATURAL/SBR
Usage: Red rubber drum-cured sheet; an excellent, low cost, flange gasket material for air, hot and cold water, saturated steam and exterior service
7755 NITRILE
Usage: Food grade sheet meets “3A Sanitary Standards for Multiple-Use Rubber and Rubber-Like Materials used as product contact surfaces in dairy equipment” #18-01
Main Industries: Used in all areas of food, pharmaceutical and cosmetics processing; USDA approved for meat and poultry processing
0.037
MIN. TENSILE (PSI)
1500
ELASTOMER
65-75
-20°F | 200°F
RRC (1/16, 1/8, 3/16, 1/4)
SAMPLE #
DURO. (SHORE A)
TEMP. RANGE
WEIGHT (PIW) PER 1/16
MIN. TENSILE (PSI)
ELASTOMER
70-85
-20°F | 180°F
0.046
800
WHTFDA (1/16, 3/32, 1/8, 1/4)
SAMPLE #
DURO. (SHORE A)
TEMP. RANGE
WEIGHT (PIW) PER 1/16
MIN. TENSILE (PSI)
ELASTOMER
55-65
-20°F | 200°F
0.035
1700
MULTCI (1/8, 1/4)
SAMPLE #
7745
SBR/NBR
DURO. (SHORE A)
TEMP. RANGE
WEIGHT (PIW) PER 1/16
MIN. TENSILE (PSI)
ELASTOMER
70-80
-20°F | 180°F
0.043
1300
Features / Benefits: Constructed with polyester fabric, designed to add stability where mechanical fastening is necessary, and to reduce gasket creep where heavy flange loading is required
Main Industries: For applications such as air, hot and cold water, saturated steam and low pressure steam; one ply per 1/16” thick
CU85 (1/8, 1/4, 3/8)
SAMPLE #
7720
URETHANE
DURO. (SHORE A)
TEMP. RANGE
WEIGHT (PIW) PER 1/16
MIN. TENSILE (PSI)
ELASTOMER
80-90
-60°F | 185°F
0.034
7500
Usage: A polyester base, cast urethane sheet specifically formulated and designed for material lining and many other applications requiring exceptional resistance to oil, ozone, abrasion, impact, cutting and tearing
Features / Benefits: Meets FDA criteria for contact with dry bulk foodstuffs
