FLEXCO HOOK CHART
CLIPPER®
Wire Hook System
Fastener Selection Guidelines
Please note this chart represents common hook sizes.
Additional sizes are available or can be custom made for specific application requirements.

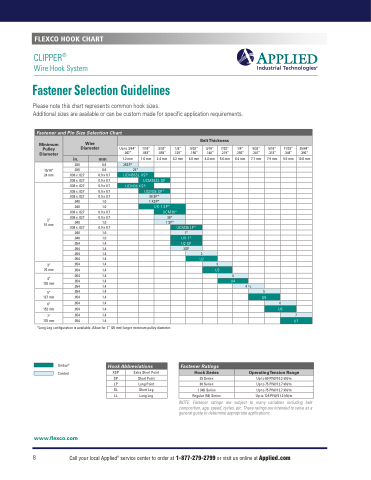

Fastener and Pin Size Selection Chart
Minimum Pulley Diameter
15/16” 24 mm
2” 51 mm
3” 76 mm
4” 102 mm
5” 127 mm
6” 152 mm
7” 175 mm
Wire Diameter
Belt Thickness
in.
.025
.025 .036 x .027 .036 x .027 .036 x .027 .036 x .027 .036 x .027 .040 .040 .036 x .027 .036 x .027 .040 .036 x .027 .040 .040 .054 .054 .054 .054 .054 .054 .054 .054 .054 .054 .054 .054 .054 .054 .054
mm
0.6
0.6 0.9 x 0.7 0.9 x 0.7 0.9 x 0.7 0.9 x 0.7 0.9 x 0.7 1.0 1.0 0.9 x 0.7 0.9 x 0.7 1.0 0.9 x 0.7 1.0 1.0 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
1.2 mm 25SP*
25*
*Long Leg configuration is available. Allow for 1”
(25 mm) larger minimum pulley diameter.
Unibar® Carded
Hook Abbreviations
Fastener Ratings
Hook Series
25 Series
XSP SP LP SL LL
Extra Short Point Short Point Long Point Short Leg Long Leg
36 Series
1 (40) Series Regular (54) Series
Operating Tension Range
Up to 60 PIW/10.2 kN/m Up to 75 PIW/12.7 kN/m Up to 75 PIW/12.7 kN/m Up to 125 PIW/21.2 kN/m
Up to 3/64” .047”
1/16” .063”
1.6 mm
3/32” .093”
2.4 mm
1/8” .125”
3.2 mm
5/32” .156”
4.0 mm
3/16” .188”
4.8 mm
7/32” .219”
5.6 mm
1/4” .250”
6.4 mm
9/32” .281”
7.1 mm
5/16” .313”
7.9 mm
11/32” .344”
9.0 mm
25/64” .390”
10.0 mm
UCM36SL XSP UCM36SL SP
UCM36 XSP
UCM36 SP*
36 SP* 1 XSP*
UX-1 SP* UCM36*
36* 1 SP*
www.flewxwcwow.cw.oflm.eflxecxoc.oc.ocmom
8 Call your local Applied® service center to order at 1-877-279-2799 or visit us online at Applied.com
UCM36 LP*
1*
UX-1* U2 SP 2SP
2
U2
3
U3
4
U4
41⁄2
5
U5
U6
7
NOTE: Fastener ratings are subject to many variables including belt composition, age, speed, cycles, etc. These ratings are intended to serve as a general guide to determine appropriate applications.
