Attention! Installer Must Supply Enough Electrical Cord to Allow the Fan to Swing Open.

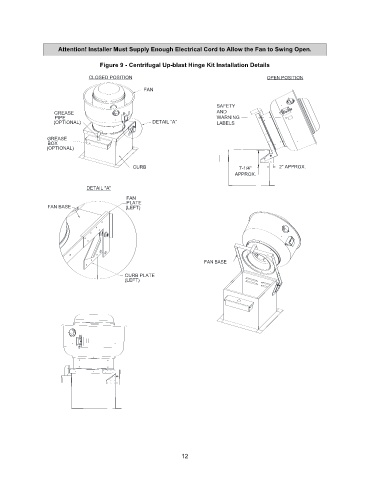

Figure 9 - Centrifugal Up-blast Hinge Kit Installation Details
CLOSED POSITION OPEN POSITION
FAN
SAFETY
GREASE AND
PIPE WARNING
(OPTIONAL) DETAIL “A” LABELS
GREASE
BOX
(OPTIONAL)
CURB 7-1/4” 2” APPROX.
APPROX.
DETAIL "A"
FAN
PLATE
FAN BASE (LEFT)
FAN BASE
CURB PLATE
(LEFT)
