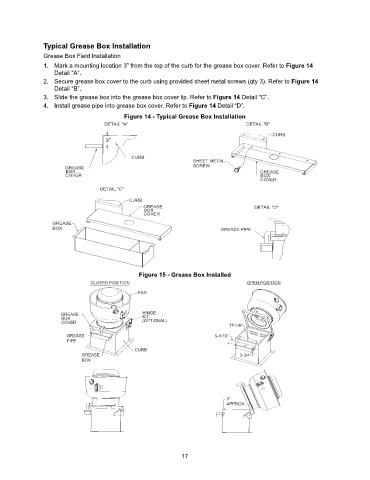

Typical Grease Box Installation
Grease Box Field Installation
1. Mark a mounting location 3” from the top of the curb for the grease box cover. Refer to Figure 14
Detail “A”.
2. Secure grease box cover to the curb using provided sheet metal screws (qty 3). Refer to Figure 14
Detail “B”.
3. Slide the grease box into the grease box cover lip. Refer to Figure 14 Detail “C”.
4. Install grease pipe into grease box cover. Refer to Figure 14 Detail “D”.
Figure 14 - Typical Grease Box Installation
DETAIL "A" DETAIL "B"

CURB
3”

CURB
SHEET METAL
SCREW
GREASE
BOX GREASE
COVER BOX
COVER
DETAIL "C"
CURB
GREASE DETAIL "D"
BOX
COVER
GREASE
BOX GREASE PIPE

Figure 15 - Grease Box Installed
CLOSED POSITION OPEN POSITION
FAN

GREASE HINGE
BOX KIT
COVER (OPTIONAL)
17-1/8”
GREASE 5-1/16”
PIPE
CURB
GREASE 3-3/4”
BOX

3”
APPROX.
