Up-blast Utility Set Inlet Options

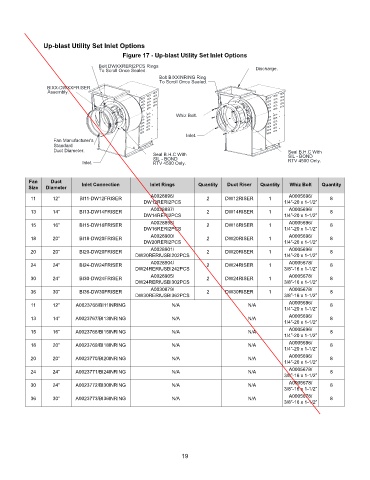

Figure 17 - Up-blast Utility Set Inlet Options
Bolt DWXXRERI2PCS Rings
To Scroll Once Sealed. Discharge.
Bolt BIXXINRING Ring
To Scroll Once Sealed.
BIXX-DWXXFRISER
Assembly.

Whiz Bolt.

Inlet.
Fan Manufacturer's
Standard
Duct Diameter. Seal B.H.C With
Seal B.H.C With SIL - BOND
SIL - BOND
Inlet. RTV 4500 Only. RTV 4500 Only.

Fan Duct
Size Diameter Inlet Connection Inlet Rings Quantity Duct Riser Quantity Whiz Bolt Quantity
A0028896/ A0005696/
11 12” BI11-DW12FRISER 2 DW12RISER 1 8
DW12RERI2PCS 1/4”-20 x 1-1/2”
A0028897/ A0005696/
13 14” BI13-DW14FRISER 2 DW14RISER 1 8
DW14RERI2PCS 1/4”-20 x 1-1/2”
A0028898/ A0005696/
15 16” BI15-DW16FRISER 2 DW16RISER 1 8
DW16RERI2PCS 1/4”-20 x 1-1/2”
A0028900/ A0005696/
18 20” BI18-DW20FRISER 2 DW20RISER 1 8
DW20RERI2PCS 1/4”-20 x 1-1/2”
A0028901/ A0005696/
20 20” BI20-DW20FRISER 2 DW20RISER 1 8
DW20RERIUSBI202PCS 1/4”-20 x 1-1/2”
A0028904/ A0005678/
24 24” BI24-DW24FRISER 2 DW24RISER 1 8
DW24RERIUSBI242PCS 3/8”-16 x 1-1/2”
A0028905/ A0005678/
30 24” BI30-DW24FRISER 2 DW24RISER 1 8
DW24RERIUSBI302PCS 3/8”-16 x 1-1/2”
A0030879/ A0005678/
36 30” BI36-DW30FRISER 2 DW30RISER 1 8
DW30RERIUSBI362PCS 3/8”-16 x 1-1/2”
A0005696/
11 12” A0023766/BI11INRING N/A N/A 8
1/4”-20 x 1-1/2”
A0005696/
13 14” A0023767/BI13INRING N/A N/A 8
1/4”-20 x 1-1/2”
A0005696/
15 16” A0023768/BI15INRING N/A N/A 8
1/4”-20 x 1-1/2”
A0005696/
18 20” A0023769/BI18INRING N/A N/A 8
1/4”-20 x 1-1/2”
A0005696/
20 20” A0023770/BI20INRING N/A N/A 8
1/4”-20 x 1-1/2”
A0005678/
24 24” A0023771/BI24INRING N/A N/A 8
3/8”-16 x 1-1/2”
A0005678/
30 24” A0023772/BI30INRING N/A N/A 8
3/8”-16 x 1-1/2”
A0005678/
36 30” A0023773/BI36INRING N/A N/A 8
3/8”-16 x 1-1/2”

19
