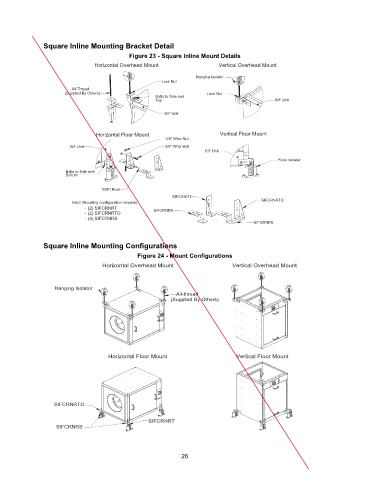

Square Inline Mounting Bracket Detail
Figure 23 - Square Inline Mount Details
Horizontal Overhead Mount Vertical Overhead Mount

Hanging Isolator
Lock Nut
All-Thread
(Supplied By Others) Lock Nut
Bolts to Side and
Top SIF Unit
SIF Unit

Horizontal Floor Mount Vertical Floor Mount
3/8" Whiz Nut
SIF Unit 3/8" Whiz Bolt
SIF Unit
Floor Isolator
Bolts to Side and
Bottom

SSPI Rivet
SIFCRNRT
SIFCRNRTO
Each Mounting configuration requires:
(2) SIFCRNRT SIFCRNRS
(2) SIFCRNRTO
(4) SIFCRNRS
SIFCRNRS

Square Inline Mounting Configurations
Figure 24 - Mount Configurations
Horizontal Overhead Mount Vertical Overhead Mount

Hanging Isolator
All-thread
(Supplied By Others)

Horizontal Floor Mount Vertical Floor Mount

SIFCRNRTO

SIFCRNRT
SIFCRNRS

26
