Fan To Building Wiring Connection

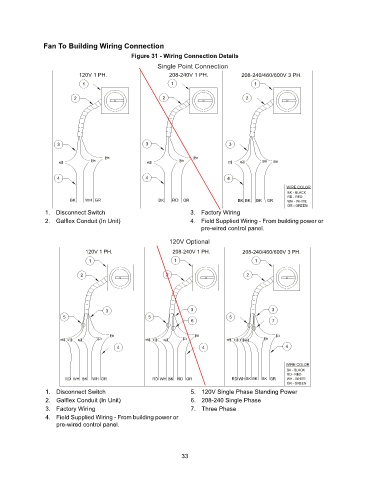

Figure 31 - Wiring Connection Details
Single Point Connection
120V 1 PH. 208-240V 1 PH. 208-240/460/600V 3 PH.
1 1 1

2 2 2

3 3 3

4 4 4
WIRE COLOR
BK - BLACK
RD - RED
BK WH GR BK RD GR BK BK BK GR WH - WHITE
GR - GREEN
1. Disconnect Switch 3. Factory Wiring
2. Galflex Conduit (In Unit) 4. Field Supplied Wiring - From building power or
pre-wired control panel.

120V Optional

120V 1 PH. 208-240V 1 PH. 208-240/460/600V 3 PH.
1 1 1
2 2 2

3 3 3
5 5 5
6 7

4 4 4

WIRE COLOR
BK - BLACK
RD - RED
RD WH BK WH GR RD WH BK RD GR RD WH BK BK BK GR WH - WHITE
GR - GREEN
1. Disconnect Switch 5. 120V Single Phase Standing Power
2. Galflex Conduit (In Unit) 6. 208-240 Single Phase
3. Factory Wiring 7. Three Phase
4. Field Supplied Wiring - From building power or
pre-wired control panel.

33
