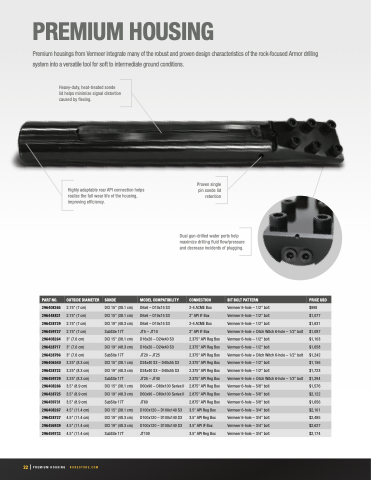

PREMIUM HOUSING
Premium housings from Vermeer integrate many of the robust and proven design characteristics of the rock-focused Armor drilling system into a versatile tool for soft to intermediate ground conditions.
PART NO.
296408265
Heavy-duty, heat-treated sonde
lid helps minimize signal distortion caused by flexing.
Highly adaptable rear API connection helps realize the full wear life of the housing, improving efficiency.
Proven single pin sonde lid retention
Dual gun-drilled water ports help maximize drilling fluid flow/pressure and decrease incidents of plugging.
OUTSIDE DIAMETER
SONDE
MODEL COMPATIBILITY
CONNECTION
BIT BOLT PATTERN
PRICE USD
$998
D24x40 S3 – D40x55 S3
2.375" API Reg Box
Vermeer 6-hole – 1/2" bolt
296428722
3.25" (8.3 cm)
DCI 19" (48.3 cm)
D24x40 S3 – D40x55 S3
2.375" API Reg Box
Vermeer 6-hole – 1/2" bolt
Vermeer 6-hole + Ditch Witch 6-hole – 1/2" bolt
$1,723
296459729
3.25" (8.3 cm)
SubSite 17T
JT25 – JT40
2.375" API Reg Box
$1,294
296408266
3.5" (8.9 cm)
DCI 15" (38.1 cm)
D60x90 – D80x100 Series II
2.875" API Reg Box
Vermeer 6-hole – 5/8" bolt
$1,576
296428725
3.5" (8.9 cm)
DCI 19" (48.3 cm)
D60x90 – D80x100 Series II
2.875" API Reg Box
Vermeer 6-hole – 5/8" bolt
$2,122
296459731
3.5" (8.9 cm)
SubSite 17T
JT60
2.875" API Reg Box
Vermeer 6-hole – 5/8" bolt
$1,656
296408267
4.5" (11.4 cm)
DCI 15" (38.1 cm)
D100x120 – D100x140 S3
3.5" API Reg Box
Vermeer 6-hole – 3/4" bolt
$2,101
296428727
4.5" (11.4 cm)
DCI 19" (48.3 cm)
D100x120 – D100x140 S3
3.5" API Reg Box
Vermeer 6-hole – 3/4" bolt
$2,485
296456939
4.5" (11.4 cm)
DCI 19" (48.3 cm)
D100x120 – D100x140 S3
3.5" API IF Box
Vermeer 6-hole – 3/4" bolt
$2,627
296459733
4.5" (11.4 cm)
SubSite 17T
JT100
3.5" API Reg Box
Vermeer 6-hole – 3/4" bolt
$2,174
22|PREMIUM HOUSING BORESTORE.COM
2.75" (7 cm)
DCI 15" (38.1 cm)
D6x6 – D10x15 S3
2-4 ACME Box
Vermeer 6-hole – 1/2" bolt
296448831
2.75" (7 cm)
DCI 15" (38.1 cm)
D6x6 – D10x15 S3
2" API IF Box
Vermeer 6-hole – 1/2" bolt
$1,077
296428729
2.75" (7 cm)
DCI 19" (48.3 cm)
D6x6 – D10x15 S3
2-4 ACME Box
Vermeer 6-hole – 1/2" bolt
$1,631
296459727
2.75" (7 cm)
SubSite 17T
JT5 – JT10
2" API IF Box
Vermeer 6-hole + Ditch Witch 6-hole – 1/2" bolt
$1,087
296408264
3" (7.6 cm)
DCI 15" (38.1 cm)
D16x20 – D24x40 S3
2.375" API Reg Box
Vermeer 6-hole – 1/2" bolt
$1,103
296428717
3" (7.6 cm)
DCI 19" (48.3 cm)
D16x20 – D24x40 S3
2.375" API Reg Box
Vermeer 6-hole – 1/2" bolt
$1,658
296428796
3" (7.6 cm)
SubSite 17T
JT20 – JT25
2.375" API Reg Box
Vermeer 6-hole + Ditch Witch 6-hole – 1/2" bolt
$1,242
296406540
3.25" (8.3 cm)
DCI 15" (38.1 cm)
$1,156
