Page 4 - Destaco - Precision Parallel Grippers

2P Series

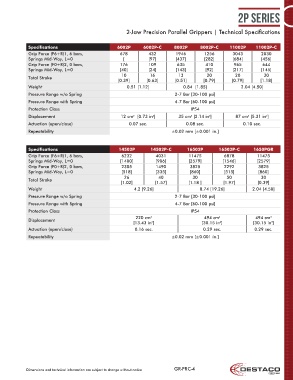

2-Jaw Precision Parallel Grippers | Technical Specifications

Specifications 6002P 6002P-C 8002P 8002P-C 11002P 11002P-C
Grip Force (F6+R)1, 6 bars, 678 432 1946 1256 3043 2030
Springs Mid-Way, L=0 [ [97] [437] [282] [684] [456]
Grip Force (F0+R)2, 0 bars, 176 109 635 410 965 644
Springs Mid-Way, L=0 [40] [24] [143] [92] [217] [145]
10 16 13 20 20 30
Total Stroke
[0.39] [0.63] [0.51] [0.79] [0.79] [1.18]
Weight 0.51 [1.12] 0.84 [1.85] 2.04 [4.50]
Pressure Range w/o Spring 2-7 Bar [30-100 psi]
Pressure Range with Spring 4-7 Bar [60-100 psi]
Protection Class IP54
Displacement 12 cm [0.73 in ] 35 cm [2.14 in ] 87 cm [5.31 in ]
3
3
3
3
3
3
Actuation (open/close) 0.07 sec. 0.08 sec. 0.10 sec.
Repeatability ±0.02 mm [±0.001 in.]
Specifications 14502P 14502P-C 16502P 16502P-C 1650PGR
Grip Force (F6+R)1, 6 bars, 6232 4031 11475 6878 11475
Springs Mid-Way, L=0 [1400] [906] [2579] [1546] [2579]
Grip Force (F0+R)2, 0 bars, 2305 1490 3825 2292 3825
Springs Mid-Way, L=0 [518] [335] [860] [515] [860]
26 40 30 50 30
Total Stroke
[1.02] [1.57] [1.18 ] [1.97] [0.39]
Weight 4.2 [9.26] 8.74 [19.26] 2.04 [4.50]
Pressure Range w/o Spring 2-7 Bar [30-100 psi]
Pressure Range with Spring 4-7 Bar [60-100 psi]
Protection Class IP54
220 cm 3 494 cm 3 494 cm
3
Displacement
[13.43 in ] [30.15 in ] [30.15 in ]
3
3
3
Actuation (open/close) 0.16 sec. 0.29 sec. 0.29 sec.
Repeatability ±0.02 mm [±0.001 in.]

Dimensions and technical information are subject to change without notice GR-PRC-4
