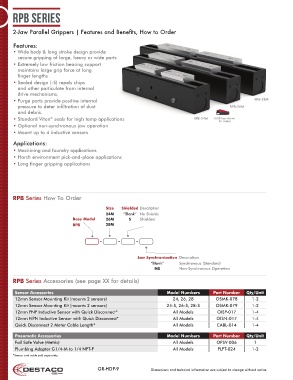

RPB Series

2-Jaw Parallel Grippers | Features and Benefits, How to Order

Features:
• Wide body & long stroke design provide
secure gripping of large, heavy or wide parts
• Extremely low friction bearing support
maintains large grip force at long
finger lengths
• Sealed design (-S) repels chips
and other particulate from internal
drive mechanisms.
• Purge ports provide positive internal RPB-28M
pressure to deter infiltration of dust RPB-26M
and debris.
• Standard Viton seals for high temp applications RPB-24M (USB key shown
®
for scale)
• Optional non-synchronous jaw operation
• Mount up to 4 inductive sensors
Applications:
• Machining and foundry applications
• Harsh environment pick-and-place applications
• Long finger gripping applications

RPB Series How To Order

Size Shielded Description
24M “Blank” No Shields
Base Model 26M S Shielded
RPB 28M

- - -

Jaw Synchronization Description
“Blank” Synchronous (Standard)
NS Non-Synchronous Operation

RPB Series Accessories (see page XX for details)

Sensor Accessories Model Numbers Part Number Qty/Unit
12mm Sensor Mounting Kit (mounts 2 sensors) 24, 26, 28 OSMK-078 1-2
12mm Sensor Mounting Kit (mounts 2 sensors) 24-S, 26-S, 28-S OSMK-079 1-2
12mm PNP Inductive Sensor with Quick Disconnect* All Models OISP-017 1-4
12mm NPN Inductive Sensor with Quick Disconnect* All Models OISN-017 1-4
Quick Disconnect 2 Meter Cable Length* All Models CABL-014 1-4

Pneumatic Accessories Model Numbers Part Number Qty/Unit
Fail Safe Valve (Metric) All Models OFSV-006 1
Plumbing Adapter G1/4-M to 1/4 NPT-F All Models PLFT-024 1-2
*Sensor and cable sold separately.

GR-HDP-9 Dimensions and technical information are subject to change without notice
