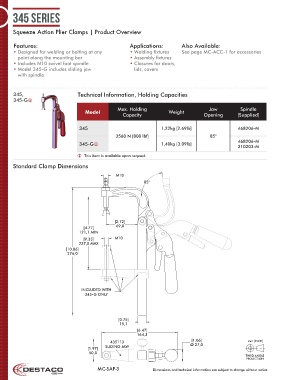

Page 3 - Destaco - Squeeze Action Plier Clamps

345 Series

Squeeze Action Plier Clamps | Product Overview

Features: Applications: Also Available:
• Designed for welding or bolting at any • Welding fixtures See page MC-ACC-1 for accessories
point along the mounting bar • Assembly fixtures
• Includes M10 swivel foot spindle • Closures for doors,
• Model 345-G includes sliding jaw lids, covers
with spindle

345, Technical Information, Holding Capacities
345-G
Max. Holding Jaw Spindle
Model Weight
Capacity Opening (Supplied)

345 1,22kg [2.69lb] 468206-M
3560 N [800 lbf] 85°
468206-M
345-G 1,40kg [3.09lb] 210203-M

 This item is available upon request.
345, 345-G
Standard Clamp Dimensions

M10
85°

[2.72]
[4.77] 69,0
121,1 MIN
[9.33] M10
237,0 MAX
[10.86]
276,0

INCLUDED WITH
345-G ONLY

[0.75]
19,1
[6.47]
164,3
[1.06]
435113 Ø 27,0 mm [INCH] mm [INCH]
[1.97] SLIDING JAW
50,0
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
MC-SAP-3 Dimensions and technical information are subject to change without notice
