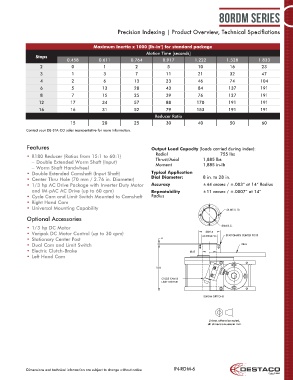

80RDM Series

Precision Indexing | Product Overview, Technical Specifiations

Maximum Inertia x 1000 [lb-in ] for standard package
2
Motion Time [seconds]
Stops
0.458 0.611 0.764 0.917 1.222 1.528 1.833
2 0 1 2 5 10 16 23
3 1 3 7 11 21 32 47
4 2 6 13 23 46 74 104
6 5 13 28 43 84 137 191
8 7 15 25 39 76 127 191
12 17 34 57 88 170 191 191
16 16 31 52 79 153 191 191
Reducer Ratio
15 20 25 30 40 50 60
Contact your DE-STA-CO sales representative for more information.

Features Output Load Capacity (loads carried during index):
• R180 Reducer (Ratios from 15:1 to 60:1) Radial 755 lbs
– Double Extended Worm Shaft (Input) Thrust/Axial 1,885 lbs
Moment
1,885 in-lb
– Worm Shaft Handwheel
• Double Extended Camshaft (Input Shaft) Typical Application
• Center Thru Hole (70 mm / 2.76 in. Diameter) Dial Diameter: 8 in. to 28 in.
• 1/3 hp AC Drive Package with Inverter Duty Motor Accuracy ±44 arcsec / ±.003” at 14” Radius
and IM-pAC AC Drive (up to 60 cpm) Repeatability ±11 arcsec / ±.0007” at 14”
• Cycle Cam and Limit Switch Mounted to Camshaft Radius
• Right Hand Cam
• Universal Mounting Capability 4X M5 X 10
Optional Accessories
• 1/3 hp DC Motor Ø60 B.C.
• Varipak DC Motor Control (up to 30 cpm) Ø69.5 STATIONARY CENTER POST
Ø50h7
• Stationary Center Post 4
• Dual Cam and Limit Switch DIAL
• Electric Clutch-Brake Ø45
• Left Hand Cam

150

CYCLE CAM &
LIMIT SWITCH

Unless otherwise noted,
all dimensions are in inches.
80RDM OPTIONS

Unless otherwise noted,
all dimensions are in mm.

Dimensions and technical information are subject to change without notice IN-RDM-6
