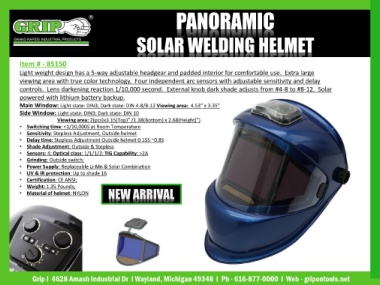

PANORAMIC

SOLAR WELDING HELMET

Item # - 85150
Light weight design has a 5-way adjustable headgear and padded interior for comfortable use. Extra large
viewing area with true color technology. Four independent arc sensors with adjustable sensitivity and delay
controls. Lens darkening reaction 1/10,000 second. External knob dark shade adjusts from #4-8 to #8-12. Solar
powered with lithium battery backup.
Main Window: Light state: DIN3; Dark state: DIN 4-8/8-12 Viewing area: 4.53” x 3.35”
Side Window: Light state: DIN3; Dark state: DIN 10
Viewing area: 2(pcs)x3.15(Top)” /1.38(Bottom) x 2.68(Height)”)
• Switching time: <1/10,000S at Room Temperature
• Sensitivity: Stepless Adjustment, Outside helmet
• Delay time: Stepless Adjustment Outside helmet 0.15S ~0.8S
• Shade Adjustment: Outside & Stepless
• Sensors: 4; Optical class: 1/1/1/2; TIG Capability: >2A
• Grinding: Outside switch;
• Power Supply: Replaceable Li-Mn & Solar Combination
• UV & IR protection: Up to shade 16
• Certification: CE ANSI;
• Weight: 1.35 Pounds;
• Material of helmet: NYLON NEW ARRIVAL
