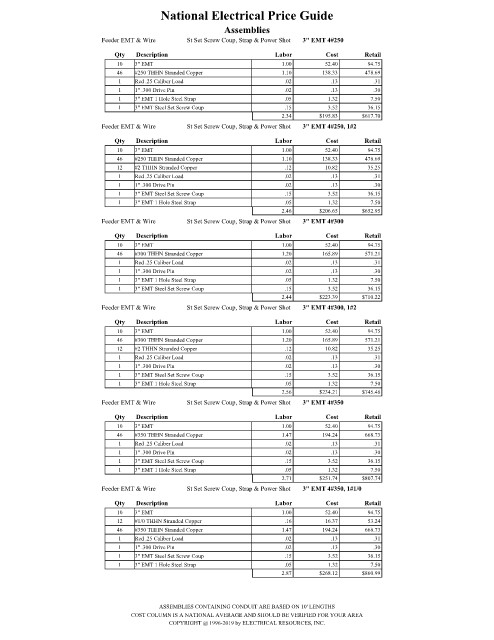

Page 1960 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#250
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 138.33 478.69
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
2.34 $195.83 $617.70
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#250, 1#2
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 138.33 478.69
12 #2 THHN Stranded Copper .12 10.82 35.25
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
2.46 $206.65 $652.95
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#300
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 165.89 571.21
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
2.44 $223.39 $710.22
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#300, 1#2
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 165.89 571.21
12 #2 THHN Stranded Copper .12 10.82 35.25
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
2.56 $234.21 $745.46
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#350
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 194.24 668.73
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
2.71 $251.74 $807.74
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#350, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.37 53.24
46 #350 THHN Stranded Copper 1.47 194.24 668.73
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
2.87 $268.12 $860.99

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
