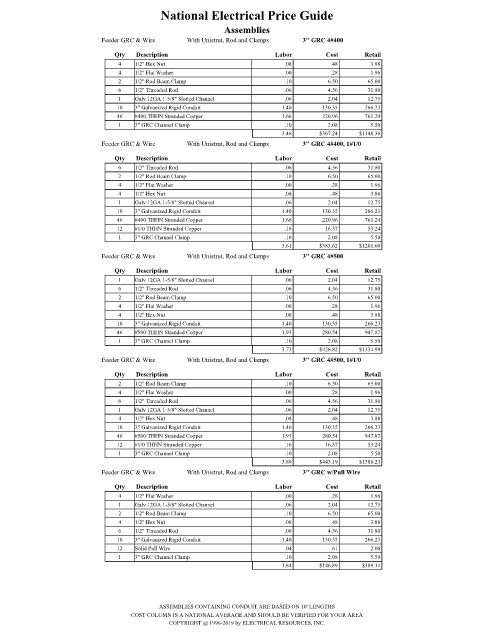

National Electrical Price Guide

Assemblies
Feeder GRC & Wire With Unistrut, Rod and Clamps 3" GRC 4#400
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3" Galvanized Rigid Conduit 1.40 130.35 266.23
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 3" GRC Channel Clamp .10 2.08 5.50
3.46 $367.24 $1148.36
Feeder GRC & Wire With Unistrut, Rod and Clamps 3" GRC 4#400, 1#1/0
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3" Galvanized Rigid Conduit 1.40 130.35 266.23
46 #400 THHN Stranded Copper 1.66 220.96 761.24
12 #1/0 THHN Stranded Copper .16 16.37 53.24
1 3" GRC Channel Clamp .10 2.08 5.50
3.61 $383.62 $1201.60
Feeder GRC & Wire With Unistrut, Rod and Clamps 3" GRC 4#500
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3" Galvanized Rigid Conduit 1.40 130.35 266.23
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 3" GRC Channel Clamp .10 2.08 5.50
3.73 $426.82 $1334.99
Feeder GRC & Wire With Unistrut, Rod and Clamps 3" GRC 4#500, 1#1/0
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
10 3" Galvanized Rigid Conduit 1.40 130.35 266.23
46 #500 THHN Stranded Copper 1.93 280.54 947.87
12 #1/0 THHN Stranded Copper .16 16.37 53.24
1 3" GRC Channel Clamp .10 2.08 5.50
3.89 $443.19 $1388.23
Feeder GRC & Wire With Unistrut, Rod and Clamps 3" GRC w/Pull Wire

Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
10 3" Galvanized Rigid Conduit 1.40 130.35 266.23
12 Solid Pull Wire .04 .61 2.00
1 3" GRC Channel Clamp .10 2.08 5.50
1.84 $146.89 $389.11

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
