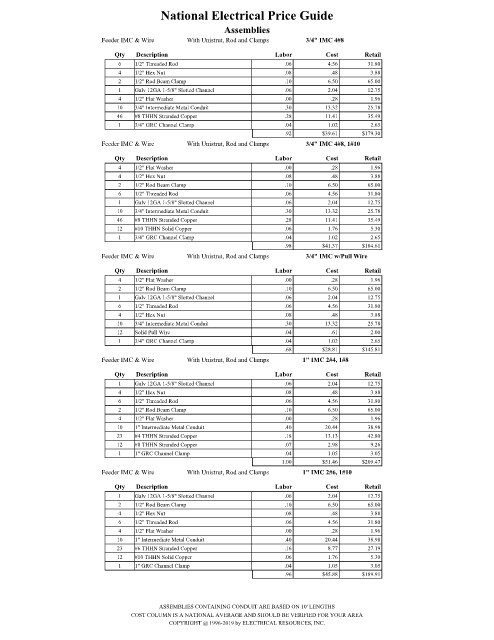

Page 2157 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder IMC & Wire With Unistrut, Rod and Clamps 3/4" IMC 4#8
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
10 3/4" Intermediate Metal Conduit .30 13.32 25.78
46 #8 THHN Stranded Copper .28 11.41 35.49
1 3/4" GRC Channel Clamp .04 1.02 2.65
.92 $39.61 $179.30
Feeder IMC & Wire With Unistrut, Rod and Clamps 3/4" IMC 4#8, 1#10
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3/4" Intermediate Metal Conduit .30 13.32 25.78
46 #8 THHN Stranded Copper .28 11.41 35.49
12 #10 THHN Solid Copper .06 1.76 5.30
1 3/4" GRC Channel Clamp .04 1.02 2.65
.98 $41.37 $184.61
Feeder IMC & Wire With Unistrut, Rod and Clamps 3/4" IMC w/Pull Wire
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
10 3/4" Intermediate Metal Conduit .30 13.32 25.78
12 Solid Pull Wire .04 .61 2.00
1 3/4" GRC Channel Clamp .04 1.02 2.65
.68 $28.81 $145.81
Feeder IMC & Wire With Unistrut, Rod and Clamps 1" IMC 2#4, 1#8
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
10 1" Intermediate Metal Conduit .40 20.44 38.98
23 #4 THHN Stranded Copper .18 13.13 42.80
12 #8 THHN Stranded Copper .07 2.98 9.26
1 1" GRC Channel Clamp .04 1.05 3.05
1.00 $51.46 $209.47
Feeder IMC & Wire With Unistrut, Rod and Clamps 1" IMC 2#6, 1#10

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
10 1" Intermediate Metal Conduit .40 20.44 38.98
23 #6 THHN Stranded Copper .16 8.77 27.19
12 #10 THHN Solid Copper .06 1.76 5.30
1 1" GRC Channel Clamp .04 1.05 3.05
.96 $45.88 $189.91

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
