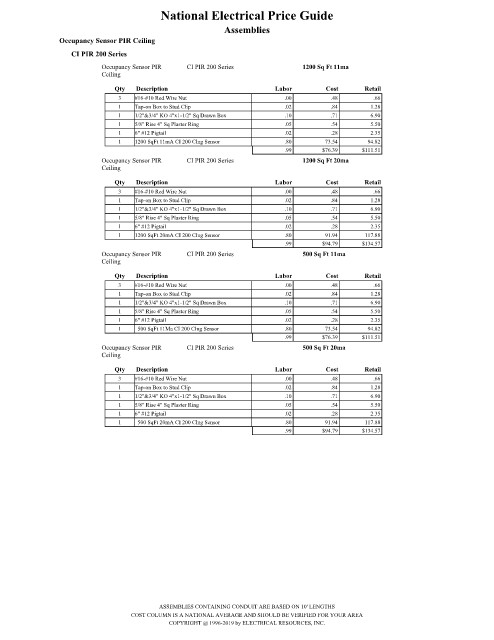

Page 2471 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Occupancy Sensor PIR Ceiling
CI PIR 200 Series
Occupancy Sensor PIR CI PIR 200 Series 1200 Sq Ft 11ma
Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 1200 SqFt 11mA CI 200 Clng Sensor .80 73.54 94.82
.99 $76.39 $111.51
Occupancy Sensor PIR CI PIR 200 Series 1200 Sq Ft 20ma
Ceiling

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 1200 SqFt 20mA CI 200 Clng Sensor .80 91.94 117.88
.99 $94.79 $134.57
Occupancy Sensor PIR CI PIR 200 Series 500 Sq Ft 11ma
Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 500 SqFt 11Ma CI 200 Clng Sensor .80 73.54 94.82
.99 $76.39 $111.51
Occupancy Sensor PIR CI PIR 200 Series 500 Sq Ft 20ma
Ceiling

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 500 SqFt 20mA CI 200 Clng Sensor .80 91.94 117.88
.99 $94.79 $134.57

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
