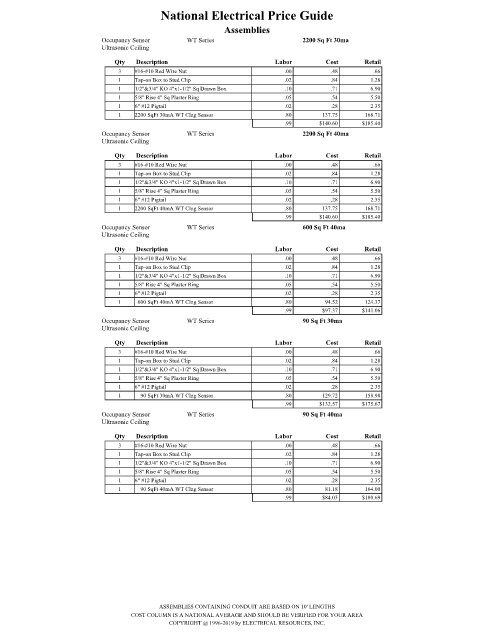

Page 2502 - National Electrical Price Guide
P. 2502
National Electrical Price Guide
Assemblies
Occupancy Sensor WT Series 2200 Sq Ft 30ma
Ultrasonic Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 2200 SqFt 30mA WT Clng Sensor .80 137.75 168.71
.99 $140.60 $185.40
Occupancy Sensor WT Series 2200 Sq Ft 40ma
Ultrasonic Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 2200 SqFt 40mA WT Clng Sensor .80 137.75 168.71
.99 $140.60 $185.40
Occupancy Sensor WT Series 600 Sq Ft 40ma
Ultrasonic Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 600 SqFt 40mA WT Clng Sensor .80 94.52 124.37
.99 $97.37 $141.06
Occupancy Sensor WT Series 90 Sq Ft 30ma
Ultrasonic Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 90 SqFt 30mA WT Clng Sensor .80 129.72 158.98
.99 $132.57 $175.67
Occupancy Sensor WT Series 90 Sq Ft 40ma
Ultrasonic Ceiling
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 90 SqFt 40mA WT Clng Sensor .80 81.18 164.00
.99 $84.03 $180.69
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
