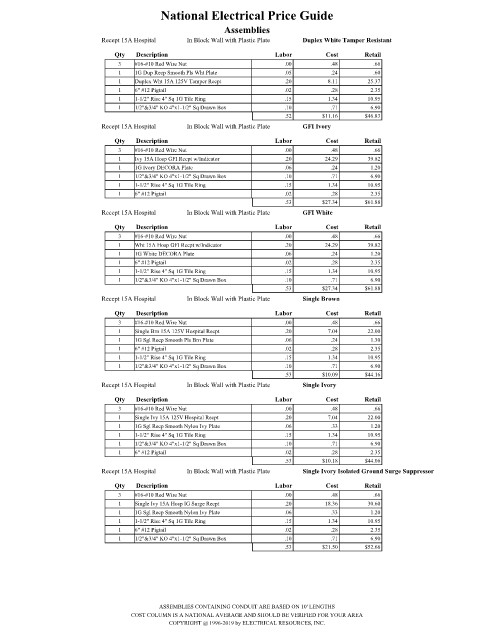

Page 2529 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 15A Hospital In Block Wall with Plastic Plate Duplex White Tamper Resistant
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 1G Dup Recp Smooth Pls Wht Plate .05 .24 .60
1 Duplex Wht 15A 125V Tamper Recpt .20 8.11 25.37
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.52 $11.16 $46.83
Recept 15A Hospital In Block Wall with Plastic Plate GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Ivy 15A Hosp GFI Recpt w/Indicator .20 24.29 39.82
1 1G Ivory DECORA Plate .06 .24 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.53 $27.34 $61.88
Recept 15A Hospital In Block Wall with Plastic Plate GFI White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Wht 15A Hosp GFI Recpt w/Indicator .20 24.29 39.82
1 1G White DECORA Plate .06 .24 1.20
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $27.34 $61.88
Recept 15A Hospital In Block Wall with Plastic Plate Single Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Single Brn 15A 125V Hospital Recpt .20 7.04 22.00
1 1G Sgl Recp Smooth Pls Brn Plate .06 .24 1.30
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $10.09 $44.16
Recept 15A Hospital In Block Wall with Plastic Plate Single Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Single Ivy 15A 125V Hospital Recpt .20 7.04 22.00
1 1G Sgl Recp Smooth Nylon Ivy Plate .06 .33 1.20
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.53 $10.18 $44.06
Recept 15A Hospital In Block Wall with Plastic Plate Single Ivory Isolated Ground Surge Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Single Ivy 15A Hosp IG Surge Recpt .20 18.36 30.60
1 1G Sgl Recp Smooth Nylon Ivy Plate .06 .33 1.20
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $21.50 $52.66

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
