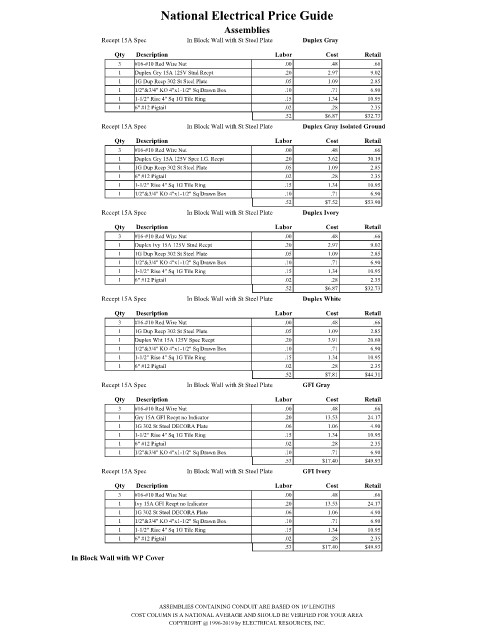

Page 2556 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 15A Spec In Block Wall with St Steel Plate Duplex Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Duplex Gry 15A 125V Stnd Recpt .20 2.97 9.02
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.52 $6.87 $32.73
Recept 15A Spec In Block Wall with St Steel Plate Duplex Gray Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Duplex Gry 15A 125V Spec I.G. Recpt .20 3.62 30.19
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.52 $7.52 $53.90
Recept 15A Spec In Block Wall with St Steel Plate Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Duplex Ivy 15A 125V Stnd Recpt .20 2.97 9.02
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.52 $6.87 $32.73
Recept 15A Spec In Block Wall with St Steel Plate Duplex White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 Duplex Wht 15A 125V Spec Recpt .20 3.91 20.60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.52 $7.81 $44.31
Recept 15A Spec In Block Wall with St Steel Plate GFI Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Gry 15A GFI Recpt no Indicator .20 13.53 24.17
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $17.40 $49.93
Recept 15A Spec In Block Wall with St Steel Plate GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .48 .66
1 Ivy 15A GFI Recpt no Indicator .20 13.53 24.17
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.53 $17.40 $49.93
In Block Wall with WP Cover

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
