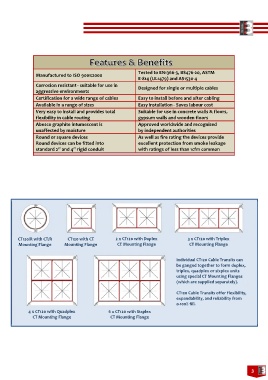

Page 3 - Fire Clamp Cable Transit 3Roda

Tested to EN1366-3, BS476-20, ASTM
Manufactured to ISO 9001:2000
E-814 (UL1479) and AS1530-4
Corrosion resistant - suitable for use in Designed for single or multiple cables
aggressive environments
Certification for a wide range of cables Easy to install before and after cabling
Available in a range of sizes Easy installation - Saves labour cost
Very easy to install and provides total Suitable for use in concrete walls & floors,
flexibility in cable routing gypsum walls and wooden floors
Abesco graphite intumescent is Approved worldwide and recognised
unaffected by moisture by independent authorities
Round or square devices As well as fire rating the devices provide
Round devices can be fitted into excellent protection from smoke leakage
standard 2” and 4” rigid conduit with ratings of less than 1cfm common

CT120/R with CT/R CT120 with CT 2 x CT120 with Duplex 3 x CT120 with Triplex
Mounting Flange Mounting Flange CT Mounting Flange CT Mounting Flange

Individual CT120 Cable Transits can
be ganged together to form duplex,
triplex, quadplex or sixplex units
using special CT Mounting Flanges
(which are supplied separately).

CT120 Cable Transits offer flexibility,
expandability, and reliability from
0-100% fill.

4 x CT120 with Quadplex 6 x CT120 with Sixplex
CT Mounting Flange CT Mounting Flange

3
