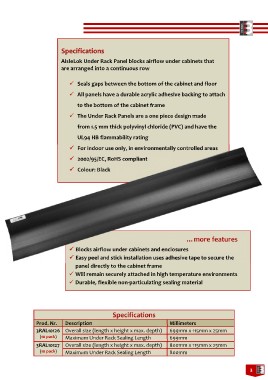

Page 3 - AisleLok Under Rack Panel
P. 3

Specifications

             AisleLok Under Rack Panel blocks airflow under cabinets that
             are arranged into a continuous row

                  Seals gaps between the bottom of the cabinet and floor
                  All panels have a durable acrylic adhesive backing to attach

                     to the bottom of the cabinet frame
                  The Under Rack Panels are a one piece design made

                     from 1.5 mm thick polyvinyl chloride (PVC) and have the
                     UL94 HB flammability rating
                  For indoor use only, in environmentally controlled areas
                  2002/95/EC, RoHS compliant
                  Colour: Black

                                                              …more features

              Blocks airflow under cabinets and enclosures
              Easy peel and stick installation uses adhesive tape to secure the

                panel directly to the cabinet frame
              Will remain securely attached in high temperature environments
              Durable, flexible non-particulating sealing material

Prod. Nr.                       Specifications            Millimeters
3RAL10126                                                 699mm x 115mm x 25mm
             Description                                  699mm
  (10 pack)  Overall size (length x height x max. depth)  800mm x 115mm x 25mm
             Maximum Under Rack Sealing Length            800mm
3RAL10127    Overall size (length x height x max. depth)
             Maximum Under Rack Sealing Length
  (10 pack)

                                                                                  3
   1   2   3
