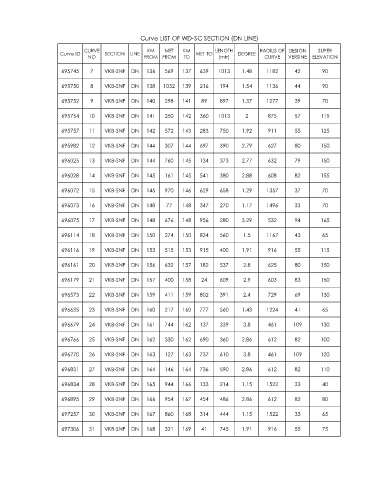

Curve LIST OF WD-SC SECTION (DN LINE)
CURVE KM MET KM LENGTH RADIUS OF DESIGN SUPER
Curve ID SECTION LINE MET TO DEGREE
NO FROM FROM TO (mtr) CURVE VERSINE ELEVATION
695745 7 VKB-SNF DN 136 569 137 639 1013 1.48 1182 42 90
695750 8 VKB-SNF DN 138 1032 139 216 194 1.54 1136 44 90
695752 9 VKB-SNF DN 140 298 141 89 897 1.37 1277 39 70
695754 10 VKB-SNF DN 141 250 142 360 1013 2 875 57 115
695757 11 VKB-SNF DN 142 572 143 283 750 1.92 911 55 125
695982 12 VKB-SNF DN 144 307 144 697 390 2.79 627 80 150
696025 13 VKB-SNF DN 144 760 145 134 373 2.77 632 79 150
696028 14 VKB-SNF DN 145 161 145 541 380 2.88 608 82 155
696072 15 VKB-SNF DN 145 970 146 629 658 1.29 1357 37 70
696073 16 VKB-SNF DN 148 77 148 347 270 1.17 1496 33 70
696075 17 VKB-SNF DN 148 676 148 956 280 3.29 532 94 165
696114 18 VKB-SNF DN 150 274 150 834 560 1.5 1167 43 65
696116 19 VKB-SNF DN 153 515 153 915 400 1.91 916 55 115
696161 20 VKB-SNF DN 156 632 157 182 537 2.8 625 80 150
696179 21 VKB-SNF DN 157 400 158 24 609 2.9 603 83 150
696573 22 VKB-SNF DN 159 411 159 802 391 2.4 729 69 130
696635 23 VKB-SNF DN 160 217 160 777 560 1.43 1224 41 65
696679 24 VKB-SNF DN 161 744 162 137 339 3.8 461 109 130
696766 25 VKB-SNF DN 162 330 162 690 360 2.86 612 82 100
696770 26 VKB-SNF DN 163 127 163 737 610 3.8 461 109 120
696831 27 VKB-SNF DN 164 146 164 736 590 2.86 612 82 110
696834 28 VKB-SNF DN 165 944 166 133 214 1.15 1522 33 40
696895 29 VKB-SNF DN 166 954 167 454 486 2.86 612 82 80
697257 30 VKB-SNF DN 167 860 168 314 444 1.15 1522 33 65
697306 31 VKB-SNF DN 168 321 169 41 745 1.91 916 55 75
