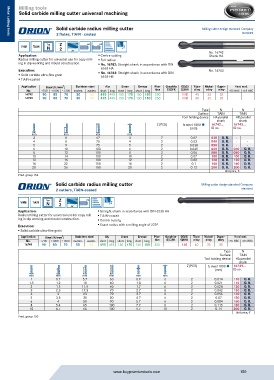

Milling tools
Solid carbide milling cutter universal machining

Solid carbide radius milling cutter Milling cutter design standard Company
2 flutes, TiAlN - coated standard
Metal cutting tools
Metal cutting tools
Typ Z HA HB
VHM TiAlN N 2
Application: ƒ Centre cutting No. 16742
Shank HA
Radius milling cutter for universal use for copy mill- ƒ Full radius
ing in dip working and mould construction. ƒ No. 16742: Straight shank in accordance with DIN
Execution: 6535 HA No. 16743
ƒ Solid carbide ultra-fine grain ƒ No. 16743: Straight shank in accordance with DIN
6535 HB
ƒ TiAIN-coated
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16742 90 80 70 50 50 495 495 150 170 130 150 250 110 40 35 35
16743 90 80 70 50 50 495 495 150 170 130 150 250 110 40 35 35

Type N N
Surface TiAlN TiAlN
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz steel 1000 ˜ 16742... 16743...
(mm) ID no. ID no.
mm mm mm mm
3 8 62 3 2 0.02 030 O. R. - -
4 8 75 4 2 0.03 040 O. R. - -
5 9 75 5 2 0.038 050 O. R. - -
6 10 100 6 2 0.045 060 O. R. 060 O. R.
8 12 100 8 2 0.06 080 O. R. 080 O. R.
10 14 100 10 2 0.07 100 O. R. 100 O. R.
12 16 100 12 2 0.08 120 O. R. 120 O. R.
16 22 150 16 2 0.1 160 O. R. 160 O. R.
20 26 150 20 2 0.12 200 O. R. 200 O. R.
Unit price, €
Prod. group 154
Solid carbide radius milling cutter Milling cutter design standard Company
2 cutters, TiAlN-coated standard

Typ Z HA
VHM TiAlN N 2
Application: ƒ Straight shank in accordance with DIN 6535 HA
Radius milling cutter for universal use for copy mill- ƒ TiAIN-coated
ing in dip working and mould construction. ƒ Centre cutting
Execution: ƒ Exact radius with a milling angle of 220°
ƒ Solid carbide ultra-fine grain
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16749 90 80 70 50 50 495 495 150 170 130 150 250 110 40 35 35
Type N
Surface TiAlN
Tool holding device HA parallel
shank
Z (PCS) fz steel 1000 ˜ 16749...
(mm) ID no.
mm mm mm mm mm mm
1 0.7 5.7 60 0.9 6 2 0.014 110 O. R.
1.5 1.2 10 60 1.3 6 2 0.021 115 O. R.
2 1.5 11.5 60 1.7 6 2 0.028 120 O. R.
3 2.3 17.3 70 2.7 6 2 0.042 130 O. R.
4 3 23 70 3.7 6 2 0.056 140 O. R.
5 3.5 30 80 4.7 6 2 0.07 150 O. R.
6 4 50 90 5.7 6 2 0.084 160 O. R.
8 5.4 65 100 7.7 8 2 0.115 180 O. R.
10 6.7 66 100 9.7 10 2 0.14 200 O. R.
Unit price, €
Prod. group 150
