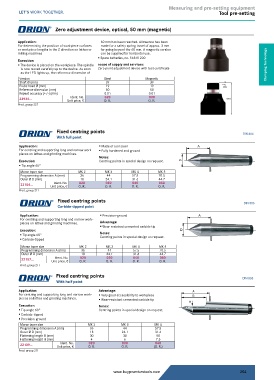

Page 204 - Buy Premium Tools ORION Catalogue

Measuring and pre-setting equipment
Tool pre-setting

Zero adjustment device, optical, 50 mm (magnetic)

Application: 60 mm has been reached. Allowance has been
For determining the position of workpiece surfaces made for a safety spring travel of approx. 3 mm
or workpiece lengths in the Z direction on lathes or for going beyond the 60 mm. A magnetic version
milling machines can be supplied for horizontal use.
ƒ Spare batteries, no. 56815 200
Execution:
ƒ The device is placed on the workpiece. The spindle scope of supply and services: Clamping Technology
is now moved carefully up to the device. As soon Zero point adjustment device with test certificate
as the LED lights up, the reference dimension of
Version Steel Magnetic
Shaft Ø (mm) 39 39
Probe head Ø (mm) 19 19 2mm
Reference dimension (mm) 50 50
Repeat accuracy (+/-) (mm) 0.01 0.01
030
Ident. No.
020
23933... Unit price, € O. R. O. R. 50mm
Prod. group 227

Fixed centring points DIN 806
With full point
Application: ƒ Made of tool steel
For centring and supporting long and narrow work- ƒ Fully hardened and ground
pieces on lathes and grinding machines.
Notes:
Execution: Centring points in special design on request.
ƒ Tip angle 60°
Morse taper size MK 2 MK 3 MK 4 MK 5
Programming dimension A (mm) 36 44 57.5 70.5
Outer Ø D (mm) 18 24.1 31.6 44.7
050
040
030
020
Ident. No.
22104... Unit price, € O. R. O. R. O. R. O. R.
Prod. group 211
Fixed centring points DIN 806
Carbide-tipped point
Application: ƒ Precision-ground
For centring and supporting long and narrow work-
pieces on lathes and grinding machines. Advantage:
ƒ Wear-resistant cemented carbide tip
Execution:
ƒ Tip angle 60° Notes:
Centring points in special design on request.
ƒ Carbide-tipped
Morse taper size MK 2 MK 3 MK 4 MK 5
Programming dimension A (mm) 36 44 57.5 70.5
Outer Ø D (mm) 18 24.1 31.6 44.7
020
040
030
050
Ident. No.
22107... Unit price, € O. R. O. R. O. R. O. R.
Prod. group 211
Fixed centring points DIN 806
With half point
Application: Advantage: A
For centring and supporting long and narrow work- ƒ Very good accessibility to workpiece B
pieces on lathes and grinding machines. ƒ Wear-resistant cemented carbide tip
Execution: Notes: H
ƒ Tip angle 60° Centring points in special design on request.
ƒ Carbide-tipped
ƒ Precision-ground
Morse taper size MK 2 MK 3 MK 4
Programming dimension A (mm) 36 44 57.5
Outer Ø D (mm) 18 24.1 31.6
Flattening length B (mm) 30 38 50
Flattening height H (mm) 4 6 7.5
040
030
Ident. No.
22109... Unit price, € 020 O. R. (O. R.)
O. R.
Prod. group 211
