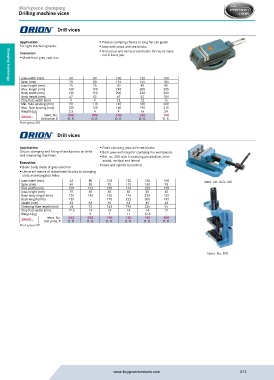

Page 211 - Buy Premium Tools ORION Catalogue

Workpiece clamping
Drilling machine vices

Drill vices

Application: ƒ Precise clamping thanks to long flat rail guide
For light machining tasks. ƒ Jaws with steps and vee blocks
Execution: ƒ Horizontal and vertical vee blocks for round mate-
rial in fixed jaw
ƒ Made from grey cast iron

Jaws width (mm) 60 80 100 120 150
Span (mm) 70 80 115 155 185
Clamping Technology
Jaws height (mm) 25 25 30 40 45
Max. length (mm) 160 190 240 300 355
Body width (mm) 130 150 200 230 260
Body height (mm) 47 52 67 82 100
Chip flute width (mm) 9 9 12 12 15
Min. flute spacing (mm) 90 110 145 180 200
Max. flute spacing (mm) 105 125 160 195 215
Weight (kg) 2.5 4 9 16 24
060
150
Ident. No.
120
100
080
28665... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. group 282
Drill vices
Application: ƒ Fixed clamping jaws with vee blocks
Secure clamping and fixing of workpieces on drills ƒ Both jaws with step for clamping flat workpieces
and measuring machines. ƒ Ref. no. 200 with 3 clamping possibilities, hori-
zontal, vertical and lateral
Execution: ƒ Jaws and spindle burnished
ƒ Basic body made of grey cast iron
ƒ Universal means of attachment thanks to clamping
slots and elongated holes
Jaws width (mm) 63 80 100 120 140 100 Ident. No. 063–140
Span (mm) 65 85 92 110 150 93
Vice width (mm) 105 142 150 176 220 155
Jaws height (mm) 25 30 30 30 40 30
Base body length (mm) 125 142 150 176 220 155
Body length (mm) 125 - 170 222 300 185
Height (mm) 43 64 65 63 85 63
Clamping flute length (mm) 53 72 163 190 225 45
Chip flute width (mm) 12.5 14 14 14 14 15
Weight (kg) - 5 7 11 12.5 -
120
Ident. No.
200
140
085
063
100
28660... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R.
Prod. group 282
Ident. No. 200
