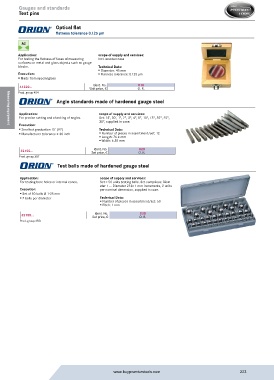

P. 223
Gauges and standards
Test pins
Optical flat
flatness tolerance 0.125 µm
Application: scope of supply and services:
For testing the flatness of faces of measuring Incl. wooden case
surfaces on metal and glass objects such as gauge
blocks. Technical Data:
Diameter: 45 mm
Execution: Flatness tolerance: 0.125 µm
Made from special glass
010
Ident. No.
41520... Unit price, € O. R.
Prod. group 454
Angle standards made of hardened gauge steel
Application: scope of supply and services:
For precise setting and checking of angles. Set: 15’, 30’, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°,
30°, supplied in case.
Execution:
Measuring equipment
Smallest graduation 15’ (¼°) Technical Data:
Manufacturer tolerance ± 30 inch Number of pieces in assortment/set: 12
Length: 76.4 mm
Width: 6.35 mm
Ident. No.
32155... Set price, € 020
O. R.
Prod. group 3BF
Test balls made of hardened gauge steel
Application: scope of supply and services:
For testing bore holes or internal cones. Set = 50 units testing balls. Set comprises: Diam-
eter 1 … Diameter 25 in 1 mm increments, 2 units
Execution: per nominal dimension, supplied in case.
Set of 50 balls Ø 1-25 mm
2 balls per diameter Technical Data:
Number of pieces in assortment/set: 50
Pitch: 1 mm
Ident. No.
030
32155... Set price, € O. R.
Prod. group 3BD
www.buypremiumtools.com 223
