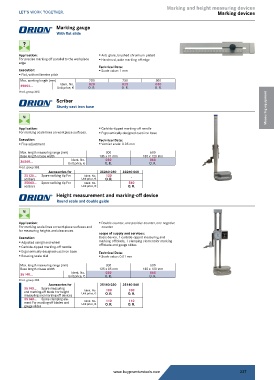

Page 237 - Buy Premium Tools ORION Catalogue

Marking and height measuring devices
Marking devices

Marking gauge
With flat slide
?

Application: ƒ Anti-glare, brushed chromium-plated
For precise marking off parallel to the workpiece ƒ Hardened, wide marking-off edge
edge
Technical Data:
Execution: ƒ Scale value: 1 mm
ƒ Flat, with millimetre pitch
Max. working length (mm) 200 250 300
Ident. No.
020
025
030
35053... Unit price, € O. R. O. R. O. R.
Prod. group 3BG
Measuring equipment
Scriber
Sturdy cast iron base

Application: ƒ Carbide-tipped marking-off needle
For marking scale lines on workpiece surfaces. ƒ Ergonomically designed cast iron base
Execution: Technical Data:
ƒ Fine adjustment ƒ Vernier scale: 0.05 mm
Max. length measuring range (mm) 300 600
Base length x base width 136 x 91 mm 180 x 120 mm
060
030
Ident. No.
35060... Unit price, € O. R. O. R.
Prod. group 3BE
Accessories for 35060 030 35060 060
35125... Spare scribing tip For Ident. No. 130 -
scribers Unit price, € O. R.
35060... Spare scribing tip For Ident. No. - 560
scribers Unit price, € O. R.
Height measurement and marking-off device
Round scale and double guide

Application: ƒ Double counter, one positive counter, one negative
For marking scale lines on workpiece surfaces and counter
for measuring heights and clearances.
scope of supply and services:
Execution: Basic device, 1 carbide-tipped measuring and
ƒ Adjusted using hand wheel marking-off blade, 1 clamping element for marking-
ƒ Carbide-tipped marking-off needle off blade and gauge slides
ƒ Ergonomically designed cast iron base Technical Data:
ƒ Rotating scale dial ƒ Scale value: 0.01 mm

Max. length measuring range (mm) 300 600
Base length x base width 125 x 85 mm 180 x 120 mm
030
060
Ident. No.
35140... Unit price, € O. R. O. R.
Prod. group 3BE
Accessories for 35140 030 35140 060
35140... Spare measuring 100 100
Ident. No.
and marking-off blade For height Unit price, € O. R. O. R.
measuring and marking-off devices
35140... Spare clamping ele- 110 110
Ident. No.
ment For marking-off blades and Unit price, € O. R. O. R.
gauge slides
