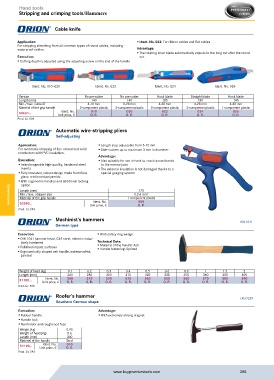

Page 268 - Buy Premium Tools ORION Catalogue

Hand tools
Stripping and crimping tools/Hammers

Cable knife

Application: ƒ Ident. No. 022: For ribbon cables and flat cables
For stripping sheathing from all common types of round cables, including
waterproof cables. Advantage:
ƒ The rotating inner blade automatically adjusts to the long cut after the round
Execution: cut
ƒ Cutting depth is adjusted using the adjusting screw on the end of the handle

Ident. No. 010–020 Ident. No. 022 Ident. No. 024 Ident. No. 026
Version No pre-cutter No pre-cutter Hook blade Straight blade Hook blade
Length (mm) 140 140 185 185 145
Min./max. cable Ø 4-16 mm 8-28 mm 4-28 mm 4-28 mm 4-28 mm
Material of the grip handle 2-component plastic 2-component plastic 2-component plastic 2-component plastic 1-component plastic
024
026
010
020
Ident. No.
53631... Unit price, € O. R. O. R. 022 O. R. O. R.
O. R.
Prod. Gr. 598
Automatic wire-stripping pliers
Self-adjusting
Application: ƒ Length stop adjustable from 5-12 mm
For automatic stripping of fine-strand and solid ƒ Side-cutters up to maximum 3 mm in diameter
conductors with PVC insulation.
Advantage:
Execution: ƒ Also suitable for use in hard-to-reach areas thanks
ƒ Interchangeable high-quality, hardened steel to the narrow jaws
inserts ƒ The external insulation is not damaged thanks to a
ƒ Fully insulated, robust design made from fibre special gauging system
glass-reinforced polyamide
ƒ With ergonomic handles and additional locking
option
Length (mm) 170
Min./max. stripper size 0.2-6 mm 2
Material of the grip handle 1-component plastic
500
Ident. No.
53580... Unit price, € O. R.
General tools
Prod. Gr. 593
Machinist’s hammers DIN 1041
German type
Execution: ƒ With safety ring wedge
ƒ DIN 1041 hammer head, C45 steel, electric-induc-
tively hardened Technical Data:
ƒ Polished impact surfaces ƒ Material of the handle: Ash
ƒ Handle fastening: Splined
ƒ Ergonomically shaped ash handle, waterproofed,
painted

Weight of head (kg) 0.1 0.2 0.3 0.4 0.5 0.6 0.8 1 1.5 2
Length (mm) 260 280 300 310 320 330 350 360 380 400
520
510
540
550
Ident. No.
560
590
530
580
570
51180... Unit price, € 500 O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
O. R.
Prod. Gr. 593
Roofer’s hammer DIN 7239
Southern German shape
Execution: Advantage:
ƒ Rubber handle ƒ With extremely strong magnet
ƒ Handle lock
ƒ Nail holder and roughened face
Weight (kg) 0.95
Weight of head (kg) 0.6
Length (mm) 300
Material of the handle Steel
Ident. No.
51190... Unit price, € 010
O. R.
Prod. Gr. 593
