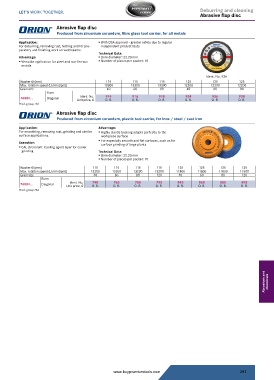

Page 291 - Buy Premium Tools ORION Catalogue

Deburring and cleaning
Abrasive flap disc

Abrasive flap disc
Produced from zirconium corundum, fibre glass tool carrier, for all metals
Application: ƒ With OSA approval - greater safety due to regular
For deburring, removing rust, fettling and for pre- independent product tests
paratory and finishing work on weld seams.
Technical Data:
Advantage: ƒ Bore diameter: 22.23 mm
ƒ Versatile application for steel and non-ferrous ƒ Number of pieces per packet: 10
metals

Ident. No. 936
Washer Ø (mm) 115 115 115 125 125 125
Max. rotation speed (U/min(rpm)) 13300 13300 13300 12200 12200 12200
Grain size 40 60 80 40 60 80
Form
936
Ident. No.
938
934
918
914
76084... Diagonal Unit price, € O. R. 916 O. R. O. R. O. R. O. R.
O. R.
Prod. group 766
Abrasive flap disc
Produced from zirconium corundum, plastic tool carrier, for Inox / steel / cast iron
Application: Advantage:
For smoothing, removing rust, grinding and similar ƒ Highly elastic backing adapts perfectly to the
surface applications. workpiece surface
Execution: ƒ For especially smooth and flat surfaces, such as for
surface grinding of large plants
ƒ CAL zirconium: Cooling agent layer for cooler
grinding Technical Data:
ƒ Bore diameter: 22.23 mm
ƒ Number of pieces per packet: 10
Washer Ø (mm) 115 115 115 115 125 125 125 125
Max. rotation speed (U/min(rpm)) 13200 13200 13200 13200 11800 11800 11800 11800
Grain size 40 60 80 120 40 60 80 120
Form
860
880
895
780
760
740
840
795
Ident. No.
76084... Diagonal Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
Prod. group 766

Abrasives and chemicals
