P. 846

Building Services

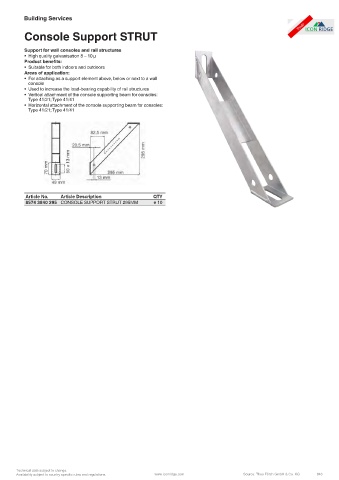

          Console Support STRUT


          Support for wall consoles and rail structures
          • High quality galvanisation 8 – 10 μ
          Product benefits:
          • Suitable for both indoors and outdoors
          Areas of application:
          • For attaching as a support element above, below or next to a wall
           console
          • Used to increase the load-bearing capability of rail structures
          • Vertical attachment of the console supporting beam for consoles:
           Type 41/21; Type 41/41
          • Horizontal attachment of the console supporting beam for consoles:
           Type 41/21; Type 41/41

















          Article No.  Article Description             QTY
          8574 3840 295  CONSOLE SUPPORT STRUT 295MM   e 10

























































       Technical data subject to change.
       Availability subject to country specific rules and regulations.   www.iconridge.com  Source: Theo Förch GmbH & Co. KG                  846
