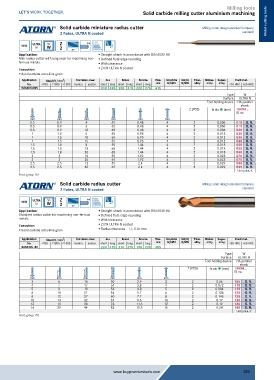

Page 250 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter aluminium machining

Solid carbide miniature radius cutter Milling cutter design standard Company Metal cutting tools
2 flutes, ULTRA N coated standard

ULTRA Typ Z HA
VHM W
N 2
Application: ƒ Straight shank in accordance with DIN 6535 HA
Mini radius cutter with long neck for machining non- ƒ Defined flute edge rounding
ferrous metals. ƒ With clearance
Execution: ƒ ZrCN ULTRA N coated
ƒ Solid carbide ultra-fine grain
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16654010-095 310 495 250 310 220 275 415
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16654...
ID no.
mm mm mm mm mm mm
0.5 0.9 4 55 0.48 4 2 0.006 010 O. R.
0.5 0.9 6 65 0.48 4 2 0.006 015 O. R.
0.5 0.9 10 65 0.48 4 2 0.006 020 O. R.
1 1.5 5 55 0.95 4 2 0.012 030 O. R.
1 1.5 10 65 0.95 4 2 0.012 035 O. R.
1 1.5 15 65 0.95 4 2 0.012 040 O. R.
1.5 1.8 8 55 1.44 4 2 0.018 050 O. R.
1.5 1.8 15 65 1.44 4 2 0.018 055 O. R.
1.5 1.8 20 65 1.44 4 2 0.018 060 O. R.
2 2 10 55 1.92 4 2 0.023 070 O. R.
2 2 20 65 1.92 4 2 0.023 075 O. R.
2.5 2.5 12 55 2.4 4 2 0.029 090 O. R.
2.5 2.5 20 65 2.4 4 2 0.029 095 O. R.
Unit price, €
Prod. group 152
Solid carbide radius cutter Milling cutter design standard Company
2 flutes, ULTRA N coated standard

Typ
VHM ULTRA W Z HA
N 2
Application: ƒ Straight shank in accordance with DIN 6535 HA
Standard radius cutter for machining non-ferrous ƒ Defined flute edge rounding
metals. ƒ With clearance
Execution: ƒ ZrCN ULTRA N coated
ƒ Solid carbide ultra-fine grain ƒ Radius tolerance = +/- 0.01 mm

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16654105-140 220 470 210 275 190 230 385
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16654...
ID no.
mm mm mm mm mm mm
3 6 16 50 2.9 3 2 0.06 105 O. R.
4 7 17 54 3.8 4 2 0.072 110 O. R.
5 8 18 54 4.8 5 2 0.084 115 O. R.
6 10 21 54 5.7 6 2 0.108 120 O. R.
8 12 27 60 7.7 8 2 0.145 125 O. R.
10 13 32 67 9.6 10 2 0.17 130 O. R.
12 16 38 73 11.6 12 2 0.19 135 O. R.
16 20 44 83 15.5 16 2 0.24 140 O. R.
Unit price, €
Prod. group 152
