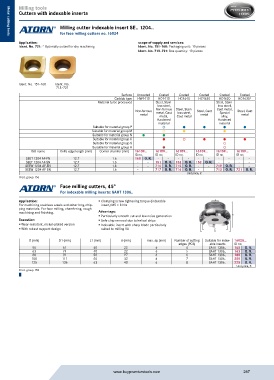

Page 287 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

Milling cutter indexable insert SE.. 1204..
for face milling cutters no. 16024
Metal cutting tools
Application: scope of supply and services:
Ident. No. 721: * Optimally suited for dry machining Ident. No. 151–160: Packaging unit: 10 pieces
Ident. No. 713–721: Box quantity: 10 pieces

Ident. No. 151–160 Ident. No.
713–721
Surface Uncoated Coated Coated Coated Coated Coated
Carbide type HW4410 HC4410 HC4640 HC4630 HC4620 HC4630*
Material to be processed Steel, Stain- Steel, Stain-
less steel, less steel,
Non-ferrous Non-ferrous Steel, Stain- Steel, Cast Cast metal, Steel, Cast
less steel,
Special
metal, Cast
metal metal, Cast metal metal alloy, metal
Hardened Hardened
material material
Suitable for material group P š ˜ ˜ ˜ ˜
Suitable for material group M š ˜ ˜
Suitable for material group N ˜ ˜
Suitable for material group K ˜ š ˜ ˜ ˜
Suitable for material group S š
Suitable for material group H ˜ š
ISO name Knife edge length (mm) Corner chamfer (mm) 16109... 16109... 16109... 16109... 16109... 16109...
ID no. ID no. ID no. ID no. ID no. ID no.
SEET 1204 AF-FN 12.7 1.6 160 O. R. - - - - - - - - - -
SEET 1204 AF-SN 12.7 1.6 - - 151 O. R. 152 O. R. 153 O. R. - - - -
SEEW 1204 AF-EN 12.7 1.6 - - 714 O. R. 715 O. R. - - 719 O. R. - -
SEEW 1204 AF-SN 12.7 1.6 - - 717 O. R. 716 O. R. - - 713 O. R. 721 O. R.
Unit price, €
Prod. group 156
Face milling cutters, 45°
For indexable milling inserts: SAHT 1306..
Application: ƒ Clamping screw tightening torque (indexable d
For machining stainless steels and other long-chip- insert) M5 = 8 Nm
ping materials. For face milling, chamfering, rough
machining and finishing. Advantage:
ƒ Particularly smooth cut and low noise generation L1
Execution: ƒ Safe chip removal due to helical chips
ƒ Wear-resistant, nickel-plated version ƒ Indexable insert with sharp blade particularly
ƒ With robust support design suited to milling VA D
D1
D (mm) D1 (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Suitable for index- 16025...
edges (PCS) able inserts ID no.
50 61 40 22 6 4 SAHT 1306.. 150 O. R.
63 74 40 22 6 5 SAHT 1306.. 163 O. R.
80 91 50 27 6 6 SAHT 1306.. 180 O. R.
100 111 50 32 6 7 SAHT 1306.. 200 O. R.
125 136 63 40 6 8 SAHT 1306.. 225 O. R.
Unit price, €
Prod. group 155
