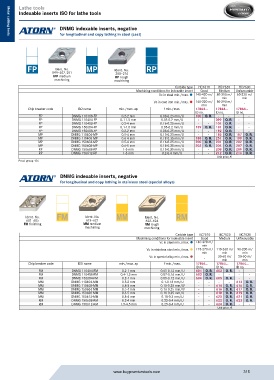

Lathe tools
Indexable inserts ISO for lathe tools

DNMG indexable inserts, negative
for longitudinal and copy lathing in steel (cast)
Metal cutting tools
Metal cutting tools

FP 099–207, 251 MP Ident. No. RP
Ident. No.
MP medium 208–214
RP rough
machining machining
Carbide type HC7610 HC7620 HC7630
Machining conditions for indexable insert Good Medium Unfavourable
Vc in steel min./max. ˜ 140-420 m/ 80-350 m/ 60-220 m/
min min min
Vc in cast iron min./max. ˜ 140-320 m/ 50-290 m/
min min -
Chip breaker code ISO name min./max. ap f min./max. 17864... 17864... 17864...
ID no. ID no. ID no.
FP DNMG 110408-FP 0.2-2 mm 0.08-0.25 mm/U 100 O. R. - - - -
FP DNMG 110404-FP 0.1-1.5 mm 0.05-0.2 mm/U - - 099 O. R. - -
FP DNMG 110408-FP 0.2-4 mm 0.16-0.25 mm/U - - 101 O. R. - -
FP DNMG 150604-FP 0.1-1.5 mm 0.05-0.2 mm/U 189 O. R. 181 O. R. - -
FP DNMG 150608-FP 0.2-2 mm 0.08-0.25 mm/U - - 182 O. R. - -
MP DNMG 110404-MP 0.5-4 mm 0.15-0.25 mm/U - - 185 O. R. 187 O. R.
MP DNMG 110408-MP 0.6-4 mm 0.18-0.35 mm/U 188 O. R. 251 O. R. 199 O. R.
MP DNMG 150604-MP 0.5-4 mm 0.16-0.25 mm/U 200 O. R. 201 O. R. 202 O. R.
MP DNMG 150608-MP 0.6-5 mm 0.18-0.35 mm/U 203 O. R. 204 O. R. 207 O. R.
RP DNMG 150608-RP 1-5 mm 0.15-0.35 mm/U - - 208 O. R. 209 O. R.
RP DNMG 150612-RP 1-6 mm 0.2-0.4 mm/U - - 212 O. R. 214 O. R.
Unit price, €
Prod. group 156

DNMG indexable inserts, negative
for longitudinal and copy lathing in stainless steel (special alloys)

Ident. No. FM Ident. No. MM Ident. No. RM
601–605 613–621 622–624
FM finishing MM medium RM rough
machining machining
Carbide type HC7510 HC7520 HC7530
Machining conditions for indexable insert Good Medium Unfavourable
Vc in steel min./max. ˜ 140-320 m/
min - -
Vc in stainless steel min./max. ˜ 175-270 m/ 110-260 m/ 90-200 m/
min min min
Vc in special alloy min./max. ˜ - 30-60 m/ 20-50 m/
min
min
Chip breaker code ISO name min./max. ap f min./max. 17864... 17864... 17864...
ID no. ID no. ID no.
FM DNMG 110404-FM 0.2-1 mm 0.05-0.12 mm/U 601 O. R. 602 O. R. - -
FM DNMG 110408-FM 0.4-1.5 mm 0.07-0.16 mm/U 603 O. R. - - - -
FM DNMG 150604-FM 0.2-1 mm 0.05-0.12 mm/U 604 O. R. 605 O. R. - -
MM DNMG 110404-MM 0.5-2 mm 0.1-0.18 mm/U - - - - 613 O. R.
MM DNMG 110408-MM 0.8-3 mm 0.15-0.25 mm/U - - 614 O. R. 615 O. R.
MM DNMG 150604-MM 0.5-4 mm 0.16-0.25 mm/U - - 616 O. R. 617 O. R.
MM DNMG 150608-MM 0.6-5 mm 0.18-0.35 mm/U - - 618 O. R. 619 O. R.
MM DNMG 150612-MM 0.8-4 mm 0.18-0.3 mm/U - - 620 O. R. 621 O. R.
RM DNMG 150608-RM 0.2-4 mm 0.22-0.4 mm/U - - 622 O. R. 623 O. R.
RM DNMG 150612-RM 1.5-4.5 mm 0.25-0.4 mm/U - - 624 O. R. - -
Unit price, €
