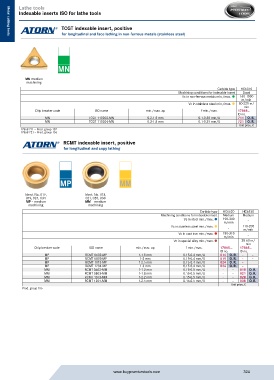

Page 324 - Buy Premium Tools ATORN Catalogue

Lathe tools
Indexable inserts ISO for lathe tools

TCGT indexable insert, positive
for longitudinal and face lathing in non-ferrous metals (stainless steel)
Metal cutting tools

MN

MN medium
machining
Carbide type HC6310
Machining conditions for indexable insert Good
Vc in non-ferrous metals min./max. ˜ 160-1000
m/min
Vc in stainless steel min./max. ˜ 80-220 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17868...
ID no.
MN TCGT 110202-MN 0.2-1.5 mm 0.1-0.35 mm/U 711 O. R.
MN TCGT 110204-MN 0.3-1.8 mm 0.1-0.35 mm/U 721 O. R.
Unit price, €
17868 711 = Prod. group 107
17868 721 = Prod. group 156
RCMT indexable insert, positive
for longitudinal and copy lathing

MP MM

Ident. No. 014, Ident. No. 018,
019, 024, 034 021, 028, 038
MP – medium MM – medium
machining machining
Carbide type HC6620 HC6530
Machining conditions for indexable insert Medium Medium
Vc in steel min./max. ˜ 190-340 -
m/min
Vc in stainless steel min./max. ˜ - 110-200
m/min
Vc in cast iron min./max. ˜ 180-310 -
m/min
Vc in special alloy min./max. ˜ - 30-60 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17865... 17865...
ID no. ID no.
MP RCMT 0602-MP 1-1.5 mm 0.15-0.4 mm/U 014 O. R. - -
MP RCMT 0803-MP 1-2 mm 0.15-0.4 mm/U 019 O. R. - -
MP RCMT 10T3-MP 1-2.5 mm 0.15-0.4 mm/U 024 O. R. - -
MP RCMT 1204-MP 1-3 mm 0.15-0.4 mm/U 034 O. R. - -
MM RCMT 0602-MM 1-1.2 mm 0.15-0.5 mm/U - - 018 O. R.
MM RCMT 0803-MM 1-1.8 mm 0.15-0.5 mm/U - - 021 O. R.
MM RCMT 10T3-MM 1-2.2 mm 0.15-0.5 mm/U - - 028 O. R.
MM RCMT 1204-MM 1-2.5 mm 0.15-0.5 mm/U - - 038 O. R.
Unit price, €
Prod. group 156
