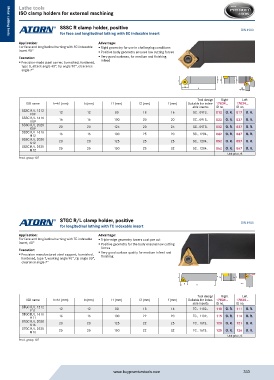

Page 333 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

SSSC R clamp holder, positive DIN 4983
for face and longitudinal lathing with SC indexable insert
Metal cutting tools
Metal cutting tools
Application: Advantage:
For face and longitudinal turning with SC indexable ƒ Rigid geometry for use in challenging conditions
insert 90° ƒ Positive body geometry ensures low cutting forces
Execution: ƒ Very good surfaces, for medium and finishing
ƒ Precision-made steel carrier, burnished, hardened, infeed
type S, attack angle 45°, tip angle 90°, clearance
angle 7°

b h1 h
f
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17834... 17834...
able inserts ID no. ID no.
SSSC R/L 1212 12 12 80 18 16 SC.. 09T3.. 012 O. R. 017 O. R.
F09
SSSC R/L 1616 16 16 100 20 20 SC.. 09T3.. 022 O. R. 027 O. R.
H09
SSSC R/L 2020 20 20 125 20 25 SC.. 09T3.. 032 O. R. 037 O. R.
K09
SSSC R/L 1616 16 16 100 25 20 SC.. 1204.. 042 O. R. 047 O. R.
H12
SSSC R/L 2020 20 20 125 25 25 SC.. 1204.. 052 O. R. 057 O. R.
K12
SSSC R/L 2525 062 O. R. 067 O. R.
M12 25 25 150 25 32 SC.. 1204..
Unit price, €
Prod. group 107

STGC R/L clamp holder, positive DIN 4983
for longitudinal lathing with TC indexable insert

Application: Advantage:
For face and longitudinal turning with TC indexable ƒ Triple-edge geometry lowers cost per cut
insert, 60° ƒ Positive geometry for the body ensures low cutting
Execution: forces
ƒ Precision-manufactured steel support, burnished, ƒ Very good surface quality for medium infeed and
finishing
hardened, type T, working angle 90°, tip angle 30°,
clearance angle 7°

b
f h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17834... 17834...
able inserts ID no. ID no.
STGC R/L 1212 110 O. R. 111 O. R.
F11 12 12 80 18 16 TC.. 1102..
STGC R/L 1616 115 O. R. 116 O. R.
H11 16 16 100 22 20 TC.. 1102..
STGC R/L 2020 120 O. R. 121 O. R.
K16 20 20 125 22 25 TC.. 16T3..
STGC R/L 2525 125 O. R. 126 O. R.
M16 25 25 150 22 32 TC.. 16T3..
Unit price, €
Prod. group 107

www.buypremiumtools.com 333
