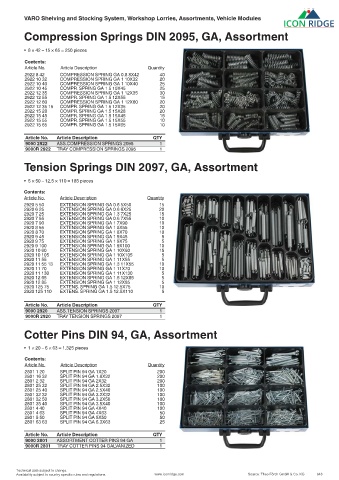

Page 643 - Icon Ridge Maintenance & Service Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Compression Springs DIN 2095, GA, Assortment

• 8 × 42 – 15 × 65 = 250 pieces
Contents:
Article No. Article Description Quantity
2922 8 42 COMPRESSION SPRING GA 0.8 8X42 40
2922 10 32 COMPRESSION SPRING GA 1 10X32 20
2922 10 40 COMPRESSION SPRING GA 1 10X40 25
2922 10 45 COMPR. SPRING GA 1.5 10X45 25
2922 12 35 COMPRESSION SPRING GA 1 12X35 30
2922 12 55 COMPR. SPRING GA 1.5 12X55 15
2922 12 60 COMPRESSION SPRING GA 1 12X60 20
2922 12 35 15 COMPR. SPRING GA 1.5 12X35 20
2922 15 28 COMPR. SPRING GA 1.5 15X28 20
2922 15 45 COMPR. SPRING GA 1.5 15X45 15
2922 15 55 COMPR. SPRING GA 1.5 15X55 10
2922 15 65 COMPR. SPRING GA 1.5 15X65 10

Article No. Article Description QTY
9000 2922 ASS.COMPRESSION SPRINGS 2095 1
9000R 2922 TRAY COMPRESSION SPRINGS 2095 1

Tension Springs DIN 2097, GA, Assortment

• 5 × 50 – 12,5 × 110 = 185 pieces

Contents:
Article No. Article Description Quantity
2920 5 50 EXTENSION SPRING GA 0.6 5X50 15
2920 6 25 EXTENSION SPRING GA 0.6 6X25 20
2920 7 25 EXTENSION SPRING GA 1.3 7X25 15
2920 7 55 EXTENSION SPRING GA 0.6 7X55 10
2920 7 90 EXTENSION SPRING GA 1 7X90 10
2920 8 55 EXTENSION SPRING GA 1 8X55 10
2920 8 70 EXTENSION SPRING GA 1 8X70 10
2920 9 45 EXTENSION SPRING GA 1 9X45 5
2920 9 75 EXTENSION SPRING GA 1 9X75 5
2920 9 100 EXTENSION SPRING GA 1 9X100 10
2920 10 60 EXTENSION SPRING GA 1 10X60 15
2920 10 105 EXTENSION SPRING GA 1 10X105 5
2920 11 55 EXTENSION SPRING GA 1 11X55 5
2920 11 55 13 EXTENSION SPRING GA 1.3 11X55 10
2920 11 70 EXTENSION SPRING GA 1 11X70 10
2920 11 130 EXTENSION SPRING GA 1 11X130 5
2920 12 65 EXTENSION SPRING GA 1.5 12X65 5
2920 12 85 EXTENSION SPRING GA 1 12X85 5
2920 125 75 EXTENS. SPRING GA 1.5 12.5X75 10
2920 125 110 EXTENS. SPRING GA 1.5 12.5X110 5
Article No. Article Description QTY
9000 2920 ASS.TENSION SPRINGS 2097 1
9000R 2920 TRAY TENSION SPRINGS 2097 1

Cotter Pins DIN 94, GA, Assortment

• 1 × 20 – 6 × 63 = 1,325 pieces
Contents:
Article No. Article Description Quantity
2801 1 20 SPLIT PIN 94 GA 1X20 200
2801 16 32 SPLIT PIN 94 GA 1.6X32 200
2801 2 32 SPLIT PIN 94 GA 2X32 200
2801 25 32 SPLIT PIN 94 GA 2.5X32 100
2801 25 40 SPLIT PIN 94 GA 2.5X40 100
2801 32 32 SPLIT PIN 94 GA 3.2X32 100
2801 32 50 SPLIT PIN 94 GA 3.2X50 100
2801 35 40 SPLIT PIN 94 GA 3.5X40 100
2801 4 40 SPLIT PIN 94 GA 4X40 100
2801 4 63 SPLIT PIN 94 GA 4X63 50
2801 5 50 SPLIT PIN 94 GA 5X50 50
2801 63 63 SPLIT PIN 94 GA 6.3X63 25

Article No. Article Description QTY
9000 2801 ASSORTMENT COTTER PINS 94 GA 1
9000R 2801 TRAY COTTER PINS 94 GALVANIZED 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 643
