VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

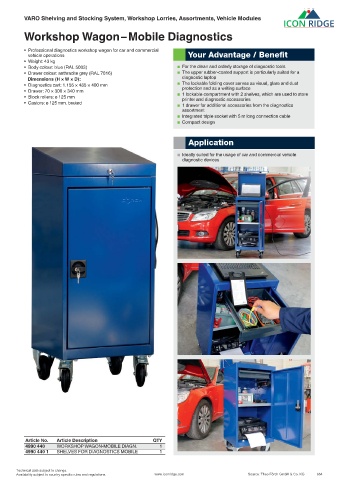

Workshop Wagon – Mobile Diagnostics

• Professional diagnostics workshop wagon for car and commercial
vehicle operations Your Advantage / Benefit
• Weight: 43 kg
• Body colour: blue (RAL 5003) For the clean and orderly storage of diagnostic tools
• Drawer colour: anthracite grey (RAL 7016) The upper rubber-coated support is particularly suited for a
diagnostic laptop
Dimensions (H × W × D):
• Diagnostics cart: 1.155 × 485 × 400 mm The lockable folding cover serves as visual, glare and dust
protection and as a writing surface
• Drawer: 70 × 300 × 340 mm
1 lockable compartment with 2 shelves, which are used to store
• Block rollers: ø 125 mm printer and diagnostic accessories
• Castors: ø 125 mm, braked
1 drawer for additional accessories from the diagnostics
assortment
Integrated triple socket with 5 m long connection cable
Compact design
Application

Ideally suited for the usage of car and commercial vehicle
diagnostic devices

Article No. Article Description QTY
4990 440 WORKSHOP WAGON-MOBILE DIAGN. 1
4990 440 1 SHELVES FOR DIAGNOSTICS MOBILE 1

Technical data subject to change.
