VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

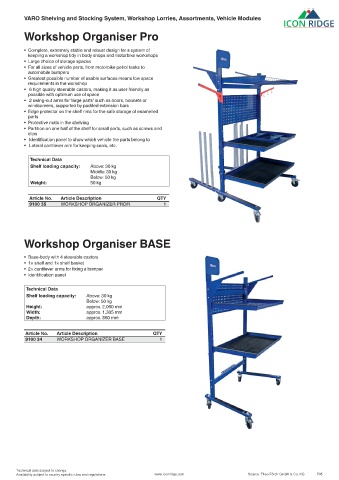

Workshop Organiser Pro

• Complete, extremely stable and robust design for a system of
keeping a workshop tidy in body shops and motorbike workshops
• Large choice of storage spaces
• For all sizes of vehicle parts, from motorbike petrol tanks to
automobile bumpers
• Greatest possible number of usable surfaces means low space
requirements in the workshop
• 6 high quality steerable castors, making it as user-friendly as
possible with optimum use of space
• 2 swing-out arms for ‘large parts’ such as doors, bonnets or
windscreens, supported by padded extension bars
• Edge protector on the shelf rims for the safe storage of enamelled
parts
• Protective mats in the shelving
• Partition on one half of the shelf for small parts, such as screws and
clips
• Identification panel to show which vehicle the parts belong to
• Lateral cantilever arm for keeping seals, etc.

Technical Data
Shelf loading capacity: Above: 30 kg
Middle: 30 kg
Below: 50 kg
Weight: 50 kg

Article No. Article Description QTY
9100 35 WORKSHOP ORGANIZER PROFI 1

Workshop Organiser BASE

• Base-body with 4 steerable castors
• 1× shelf and 1× shelf basket
• 2× cantilever arms for fixing a bumper
• Identification panel

Technical Data
Shelf loading capacity: Above: 30 kg
Below: 50 kg
Height: approx. 2,060 mm
Width: approx. 1,305 mm
Depth: approx. 860 mm

Article No. Article Description QTY
9100 34 WORKSHOP ORGANIZER BASE 1

Technical data subject to change.
