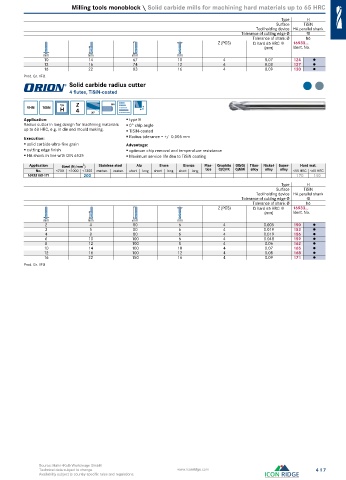

Page 417 - Industrial Tools Catalog (1)

Milling tools monoblock \ Solid carbide mills for machining hard materials up to 65 HRC
Type H
Surface TiSiN
Tool holding device HA parallel shank
Tolerance of cutting edge Ø f8
Tolerance of shank Ø h6
Z (PCS) fz hard 65 HRC ˜ 16933...
(mm) Ident. No.
mm mm mm mm
10 14 67 10 4 0.07 124 ●
12 16 74 12 4 0.08 127 ●
16 22 83 16 4 0.09 130 ●
Prod. Gr. 1FQ
Solid carbide radius cutter
4 flutes, TiSiN-coated

Typ Z HA
VHM TiSiN H 4
Application: ƒ type H
Radius cutter in long design for machining materials ƒ 0° chip angle
up to 68 HRC, e.g. in die and mould making. ƒ TiSiN-coated
Execution: ƒ Radius tolerance = +/- 0.005 mm
ƒ solid carbide ultra-fine grain Advantage:
ƒ cutting edge finish ƒ optimum chip removal and temperature resistance
ƒ HA shank in line with DIN 6535 ƒ Maximum service life deu to TiSiN coating
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16933150-171 200 170 140
Type H
Surface TiSiN
Tool holding device HA parallel shank
Tolerance of cutting edge Ø f8
Tolerance of shank Ø h6
Z (PCS) fz hard 65 HRC ˜ 16933...
(mm) Ident. No.
mm mm mm mm
2 4 80 6 4 0.005 150 ●
3 5 80 6 4 0.019 153 ●
4 8 80 6 4 0.019 156 ●
6 10 100 6 4 0.048 159 ●
8 12 100 8 4 0.06 162 ●
10 14 100 10 4 0.07 165 ●
12 16 100 12 4 0.08 168 ●
16 22 150 16 4 0.09 171 ●
Prod. Gr. 1FQ

Source: Hahn+Kolb Werkzeuge GmbH
